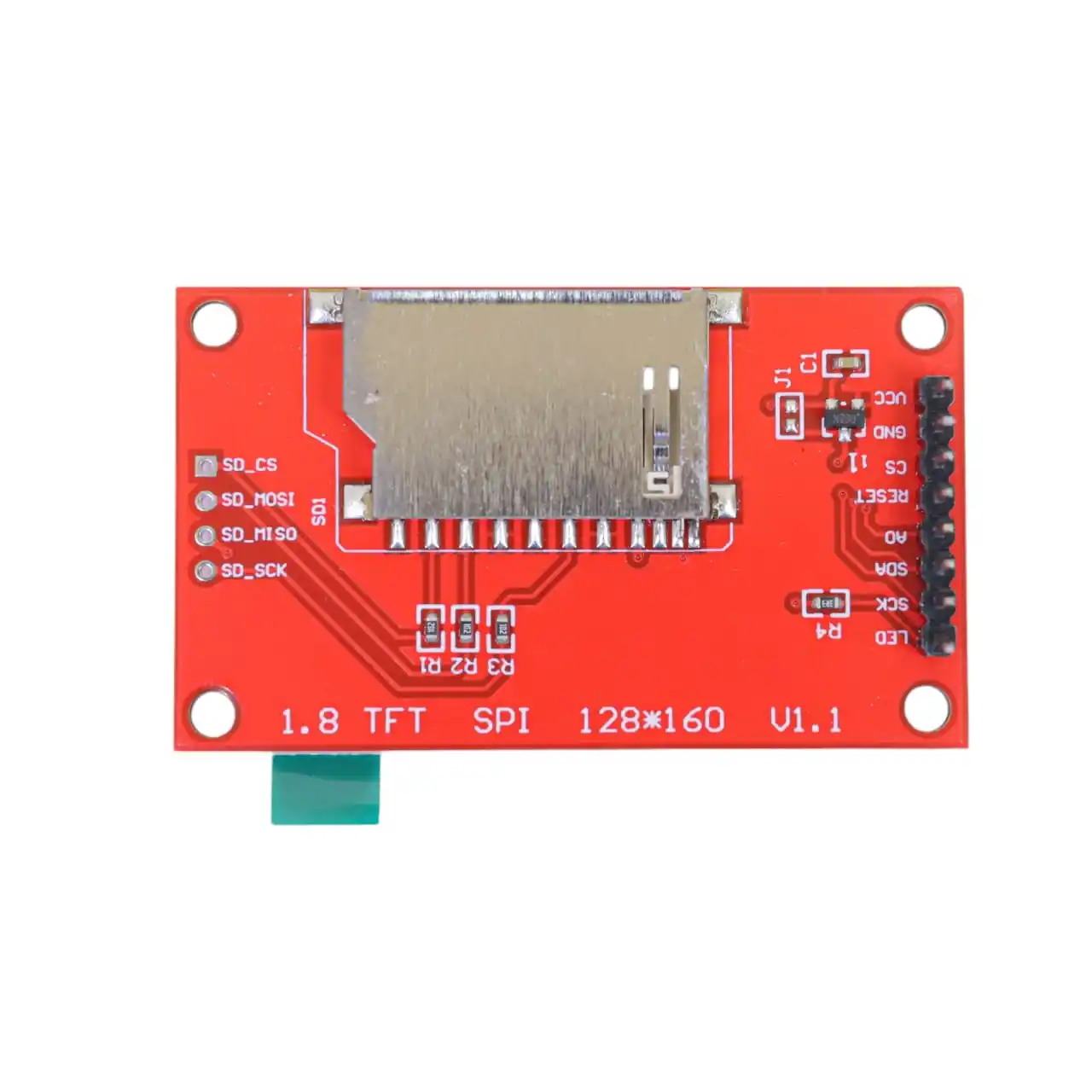

1.8-Inch 128x160 SPI TFT LCD Display Module – ST7735 Driver for 51/AVR/STM32/ARM Microcontrollers
৳775
Description:
The 1.8-Inch SPI TFT LCD Display Module is a compact and vibrant 128x160 pixel screen that leverages the ST7735 driver for high-quality visual output. This module supports 8-bit and 16-bit data interfaces, ensuring compatibility with a wide range of microcontrollers, including 51, AVR, STM32, and ARM-based platforms. Its compact design, combined with rich color support and fast SPI communication, makes it an excellent choice for various embedded projects requiring graphical interfaces.
Specifications
| Parameter | Details |
|---|---|
| Display Type | TFT LCD |
| Screen Size | 1.8 inches |
| Resolution | 128x160 pixels |
| Driver IC | ST7735 |
| Interface Type | SPI (Serial Peripheral Interface) |
| Operating Voltage | 3.3V - 5V DC |
| Color Depth | 65K colors (16-bit RGB) |
| Backlight | LED with adjustable brightness |
| Power Consumption | Low (dependent on backlight brightness) |
| Dimensions | Approx. 50mm x 35mm x 5mm |
| Weight | Approx. 10 grams |
| Compatible Platforms | 51, AVR, STM32, ARM, Arduino, and Raspberry Pi |
Key Features:
- High-Quality Display: Supports a 128x160 pixel resolution with 65,536 vibrant colors for rich visual output.
- ST7735 Driver: Ensures compatibility with popular microcontroller libraries and frameworks.
- Fast SPI Interface: Provides smooth and quick rendering of graphics and animations.
- Compact Size: Suitable for space-constrained projects like handheld devices or wearables.
- Versatile Compatibility: Works with multiple platforms, including Arduino, STM32, and Raspberry Pi.
- Adjustable Backlight: Allows customization of brightness for various lighting conditions.
- Durable Design: Built for longevity in diverse environmental conditions.
Applications:
- DIY Electronics: Ideal for creating GUIs for projects like weather stations, clocks, or gaming devices.
- IoT Interfaces: Serves as a compact and interactive display for IoT devices.
- Wearables: Perfect for fitness trackers or compact gadgets requiring graphical output.
- Education: Widely used in teaching graphics programming and embedded systems.
- Robotics: Provides real-time data visualization for robotic controls or sensors.
- Industrial Controls: Suitable for compact displays in industrial monitoring systems.
Usage Note:
When connecting the module to your microcontroller, ensure proper wiring for SPI communication (MOSI, MISO, SCK, CS, and RST pins). Use popular libraries like Adafruit ST7735 to simplify programming. Ensure the voltage levels match your controller's specifications to prevent damage.
