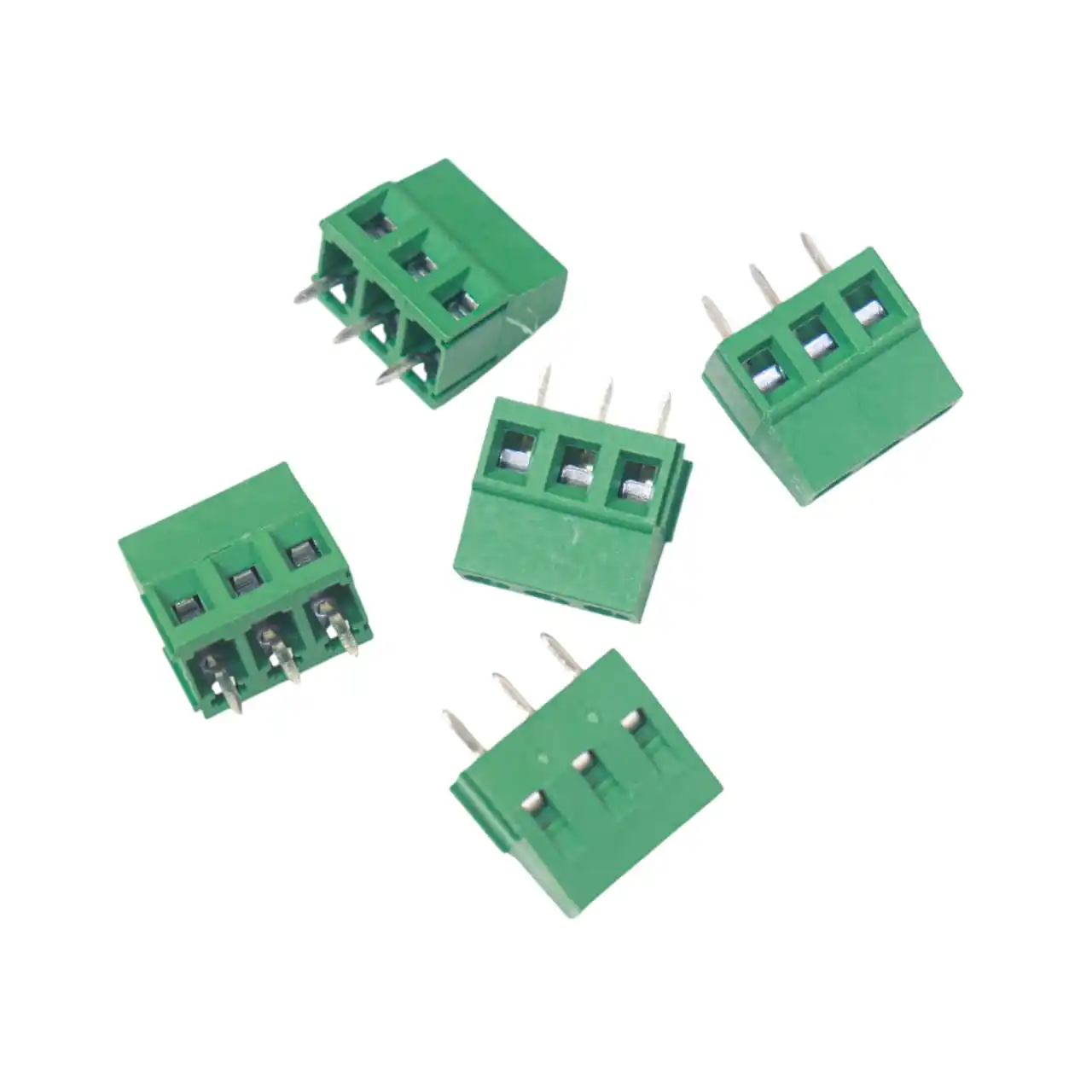

(5 pics) 3 Pin PCB Terminal Block 5mm Pitch 10A Rating YX128

Description:
The 3 Pin PCB Terminal Block YX128 is a reliable and easy-to-use connector designed for secure and efficient wire-to-board connections. With a 5mm pitch and a 10A current rating, it is ideal for various applications in electronics, including circuit boards, power supplies, and industrial equipment. Its durable design ensures stable performance in a wide range of operating conditions.

Specifications:

Key Features:

• High Current Capacity: Handles up to 10A for power applications.
• Secure Connection: Screw-down terminals ensure reliable wire retention.
• Standard Pitch: 5mm pitch is compatible with most PCB designs.
• Durable Materials: Fire-resistant polyamide body and tin-plated brass contacts for longevity.
• Easy to Use: Simple to install and connect wires for efficient prototyping and production.

Applications:

• Power Supplies: Connects wires securely in power distribution circuits.
• Industrial Control Systems: Suitable for control panels and automation equipment.
• LED Lighting: Ideal for connecting LED strips and drivers.
• DIY Electronics: Perfect for hobbyist projects requiring sturdy PCB connections.

Usage Tips:

1. Wire Preparation: Strip the wire ends to an appropriate length before inserting into the terminal.
2. Tighten Screws Securely: Ensure screws are tightened to avoid loose connections.
3. Proper Mounting: Solder the terminal block onto the PCB carefully to ensure stable attachment.
4. Avoid Overcurrent: Do not exceed the rated 10A to maintain performance and safety.

The YX128 3 Pin PCB Terminal Block is a versatile and dependable solution for making secure electrical connections on printed circuit boards. Its high-quality construction and ease of use make it an essential component in both professional and DIY projects.
