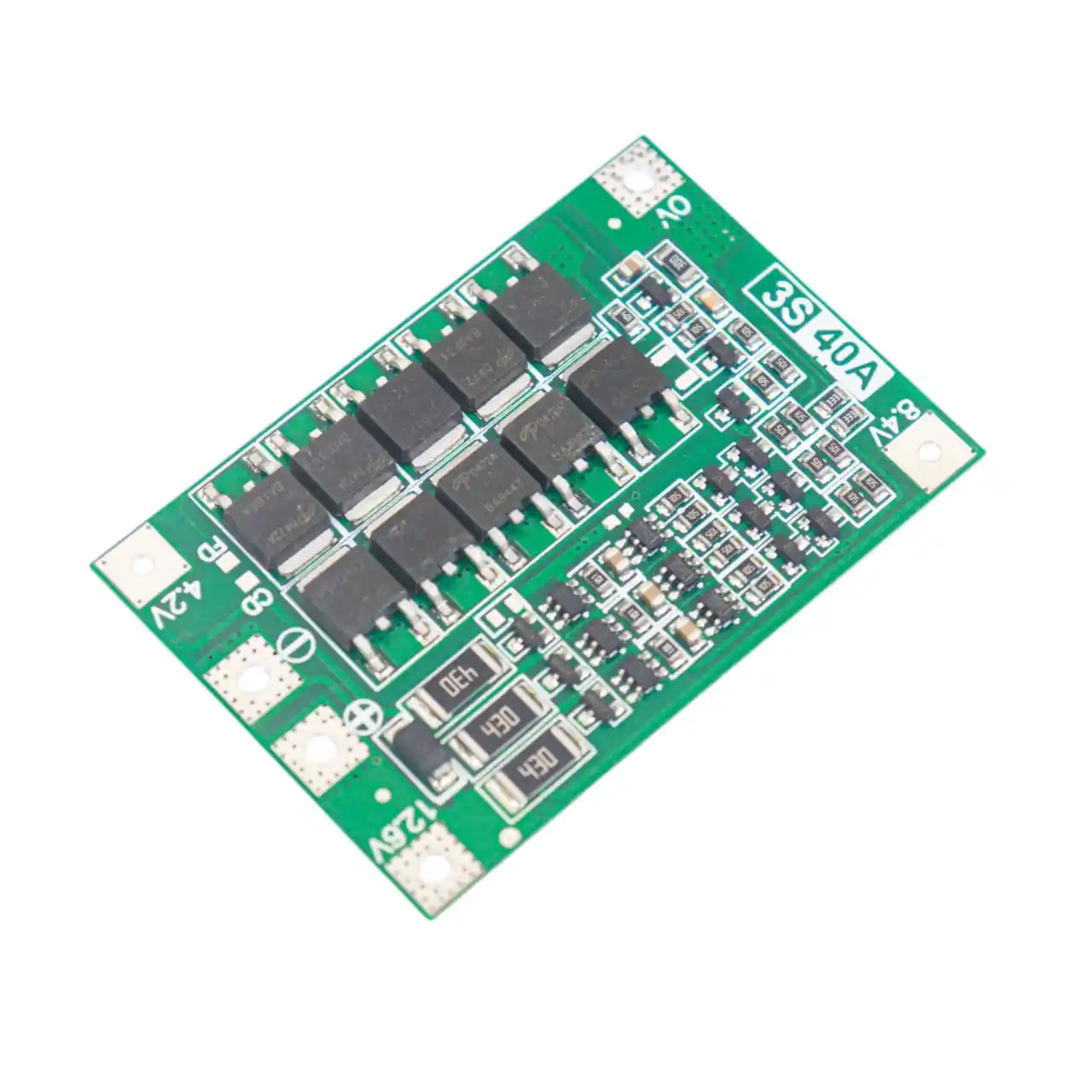

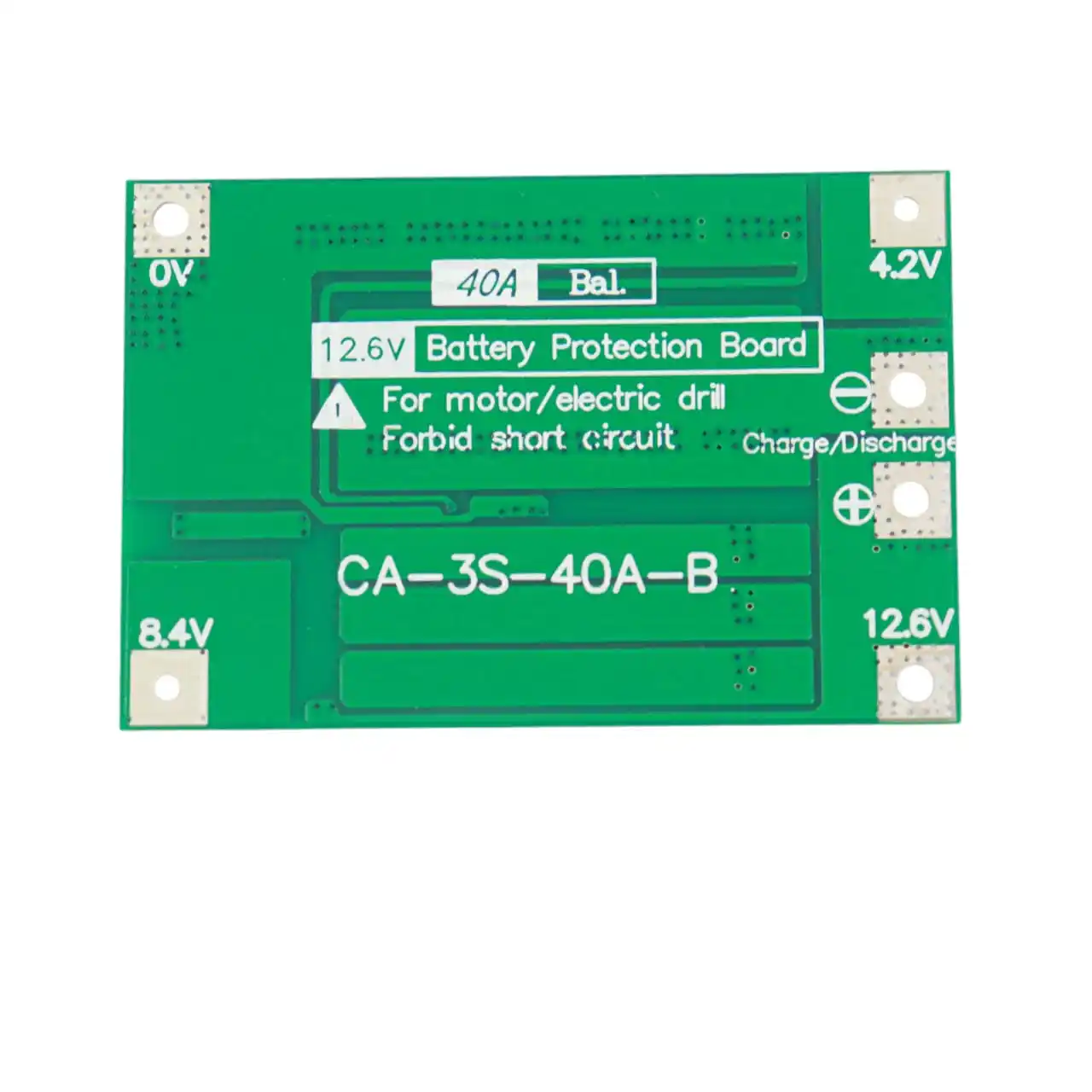

3S BMS for 18650 Battery Output 11.1V 40A

Description:
The 3S BMS for 18650 Battery is designed for managing three 18650 lithium-ion cells in a series configuration, providing a nominal voltage of 11.1V (3.7V per cell) and capable of handling up to 40A continuous discharge current. This BMS ensures safe operation of the battery pack by monitoring parameters like voltage, current, and temperature. It features overcharge, overdischarge, overcurrent, and short circuit protection, making it ideal for high-power applications such as electric vehicles, power banks, RC vehicles, and solar energy storage systems.

Specifications:

Key Features:

• Cell Balancing: Ensures that all cells in the series configuration are balanced, ensuring even discharge and extending battery life.
• High Current Capacity: Supports a continuous discharge of 40A, suitable for applications that require higher power output.
• Overcharge & Overdischarge Protection: Protects the cells from damage due to overcharging (more than 4.2V per cell) and overdischarge (below 3.0V per cell).
• Short Circuit & Overcurrent Protection: Protects the system from short circuits and excessive current (above 40A) that can cause damage.
• Temperature Protection: Prevents overheating by cutting off power if the module exceeds a safe operating temperature.
• Compact Design: Easy to integrate into DIY projects, offering excellent protection in a small form factor.

Applications:

• Electric Vehicles (EVs) – Ideal for e-bikes, e-scooters, and other electric vehicles that require high discharge rates.
• High-Capacity Power Banks – Perfect for DIY power banks requiring more power for devices like laptops, tablets, or other high-energy-consuming electronics.
• RC Vehicles & Drones – Suitable for high-powered RC cars, drones, or other hobby electronics that demand high discharge rates.
• Solar Energy Storage – Can be used in solar-powered systems, helping to manage battery charging and discharging for efficient energy use.
• Battery Packs for Tools – Can be integrated into power tools requiring a high-capacity power source.

Usage Tips:

1. Correct Wiring: Ensure proper wiring to the balance leads, positive, and negative terminals of the BMS module.
2. Avoid Overcharging: Ensure charging voltage does not exceed 4.2V per cell to prevent damage.
3. Proper Cooling: In high-discharge applications, ensure the module has proper ventilation or cooling to prevent overheating.
4. Battery Health: Regularly check the health of the 18650 cells and avoid deep discharging.
5. Safety Precautions: It is highly recommended to use fuses for additional safety, especially in high-power applications.

This 3S BMS for 18650 Battery with 40A output is a robust and reliable solution for managing high-performance lithium-ion battery packs. It ensures the safety and longevity of your battery pack while delivering the necessary power for demanding applications.
