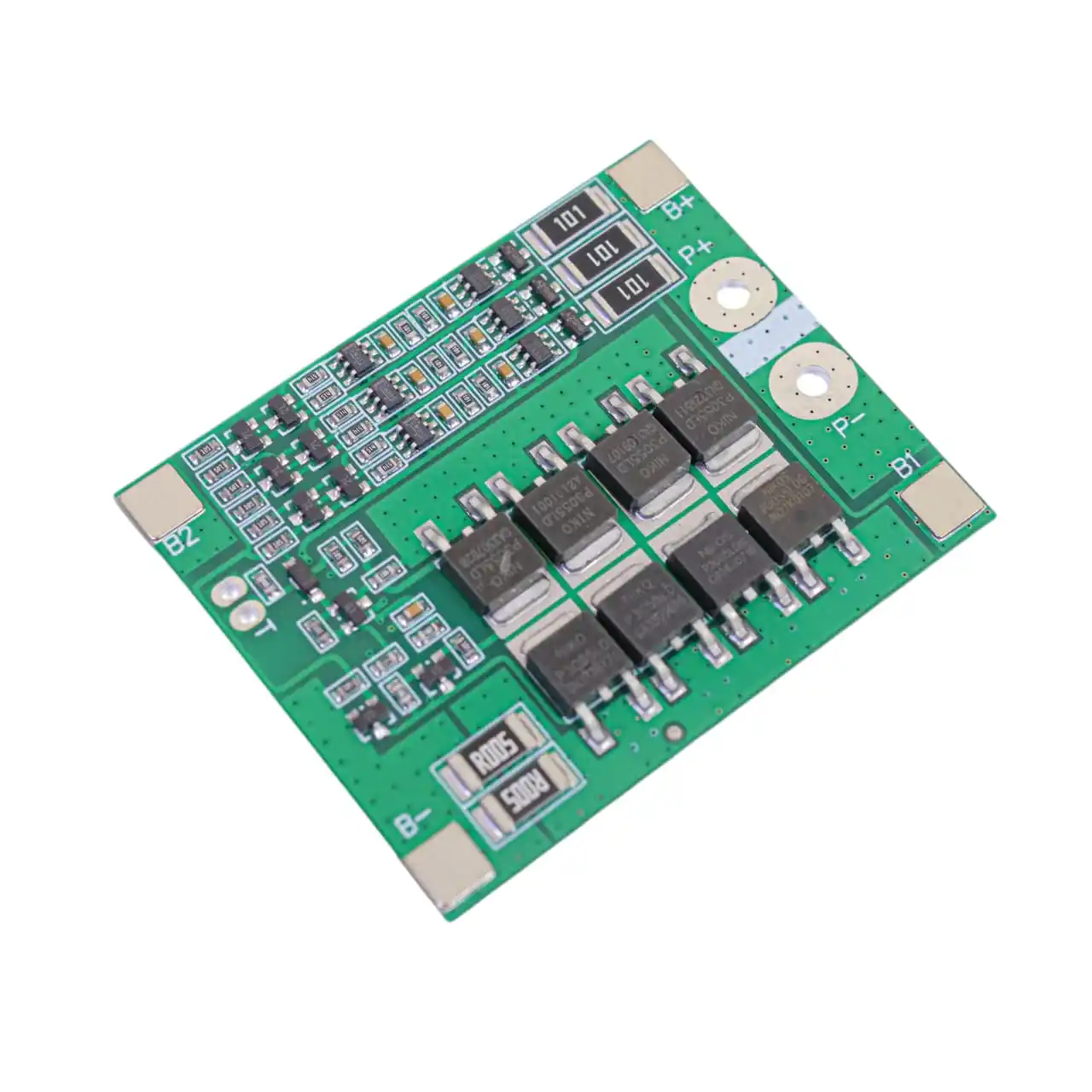

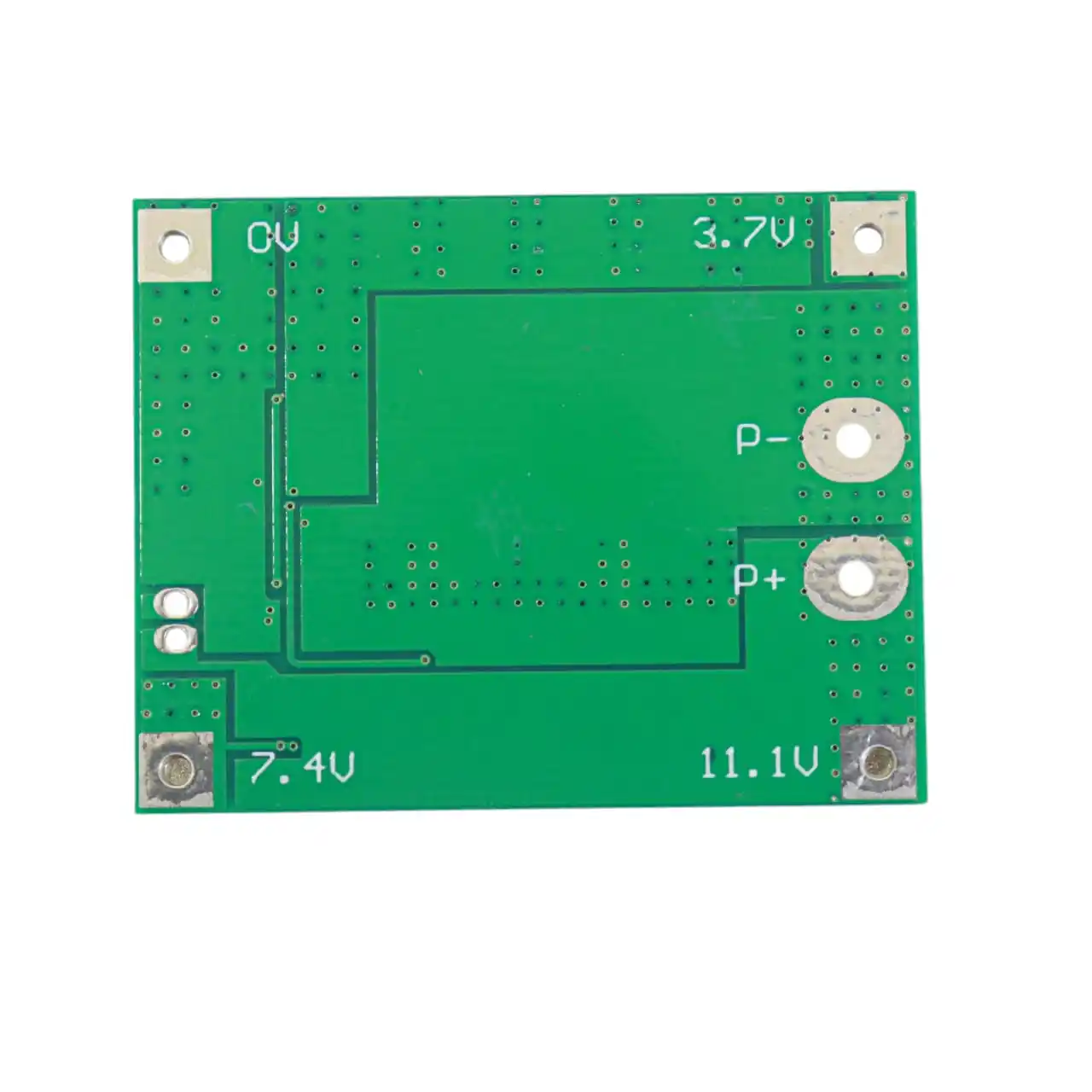

3S BMS Module HX-3S-FL25A-A for 18650 Battery Output 11.1V 25A

Description:
The 3S BMS Module HX-3S-FL25A-A is a Battery Management System (BMS) designed specifically for 3-cell 18650 lithium-ion batteries in series, providing a nominal voltage of 11.1V. It is capable of handling a continuous discharge current of 25A, making it suitable for high-performance applications such as power banks, electric vehicles, and other devices that require a stable and safe power source. The BMS ensures optimal charging and discharging processes, balancing the cells and protecting them from overcharging, overdischarging, and excessive current.

Specifications:

Key Features:

• Cell Balancing: Ensures that all three cells in the series are balanced for safe and efficient operation.
• Overcharge & Overdischarge Protection: Protects the cells from excessive voltage (over 4.2V) and deep discharge (below 3.0V).
• Overcurrent & Short Circuit Protection: Automatically cuts off the load if there is excessive current or a short circuit, ensuring safety.
• Current Capacity: Supports up to 25A continuous discharge current, making it suitable for high-power applications.
• Temperature Protection: Prevents damage by monitoring the temperature and shutting down if temperatures exceed safe limits.
• Compact Design: The module is compact and easy to integrate into a variety of applications, saving space while providing reliable protection.

Applications:

• Electric Vehicles (EVs) – Perfect for e-bikes, e-scooters, and other electric vehicles.
• Power Banks – Ideal for DIY power bank projects where multiple cells need to be connected for higher capacity.
• Solar Energy Systems – Used in solar battery storage systems to ensure safe charging and discharging.
• RC Cars & Drones – Can be integrated into RC vehicles or drones for reliable power management.
• Portable Devices – Suitable for portable devices requiring 11.1V battery power.

Usage Tips:

1. Correct Wiring – Ensure that the balance leads, positive, and negative connections are properly wired according to the module's specifications.
2. Avoid Overcharging – Do not exceed 4.2V per cell during charging, as this can damage the battery and module.
3. Monitor Battery Condition – Regularly check the health of the 18650 cells to avoid performance degradation.
4. Use Adequate Cooling – If the module is used in high-power applications, ensure there is adequate ventilation or cooling to prevent overheating.
5. Safety First – Use fuses or circuit breakers to add an extra layer of protection against potential short circuits or overcurrent situations.

This 3S BMS Module HX-3S-FL25A-A is a highly reliable and efficient solution for managing 18650 lithium-ion batteries, ensuring both safety and longevity in applications where consistent and high-quality power is required.
