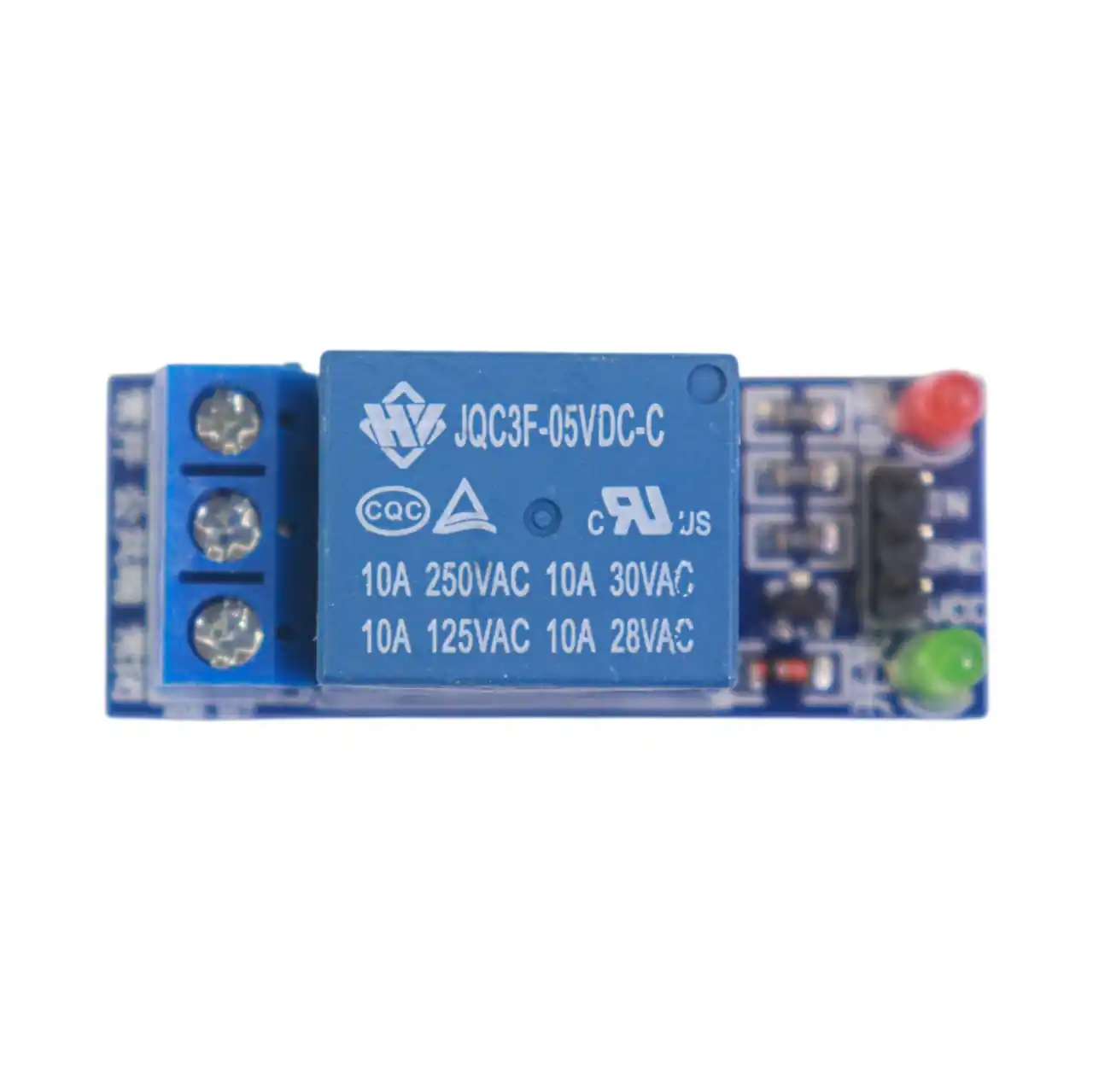

5V 1 Channel Relay Module for Arduino and IoT Applications

Description:
The 5V 1 Channel Relay Module is designed to interface with Arduino, IoT projects, and other microcontrollers to control high-voltage devices with a low-voltage signal. This relay module can be used to control AC or DC devices like motors, lights, and other home automation systems. It features a 5V operating voltage, and it is compatible with various microcontrollers like Arduino and Raspberry Pi.

The module is equipped with a single relay switch, allowing users to control high-current devices with a microcontroller's low-voltage output, making it ideal for applications such as home automation, security systems, and robotics.

Specifications:

Key Features:

• Wide Compatibility: Works with Arduino, Raspberry Pi, and other microcontrollers.
• Easy to Use: Simple control through a LOW or HIGH signal to switch a relay, compatible with most microcontrollers' logic.
• High-Voltage Control: Capable of switching AC devices (up to 250V and 10A) or DC devices (up to 30V and 10A) via the relay.
• Status Indicator: Features an LED indicator to show the status of the relay (on/off).
• Flexible Triggering: Supports both LOW-level and HIGH-level triggering based on the configuration.
• Durable Construction: The relay is built to last, with excellent current and voltage handling capabilities.

Applications:

• Home Automation: Control home appliances such as lights, fans, AC units, and other electronic devices through Arduino or IoT platforms.
• Security Systems: Can be used to control alarms, locks, or security cameras in smart security applications.
• Robot Control: Suitable for robots that require controlling motors, lights, or other external equipment.
• Industrial Automation: Useful in automation systems for controlling machines, motors, or other high-power equipment.
• IoT Projects: Easily integrates with IoT platforms for remote control of electronic devices.

Usage Tips:

1. Check Voltage Compatibility: Ensure that the relay's voltage rating matches the device you're controlling to avoid damage.
2. Use External Power for High-Power Devices: When controlling high-power devices, it's recommended to power the relay and the device separately.
3. Avoid Overloading: Do not exceed the relay's rated current and voltage to prevent damage or malfunction.
4. Test with Low Power: Before connecting high-voltage devices, test the relay with a low-power device to ensure correct operation.

Safety Instructions:

• Handle High-Voltage Devices Carefully: If you're using the relay to control AC devices, take appropriate safety precautions, such as isolating the circuit and working in a well-insulated environment.
• Protective Gear: Always use insulated tools and wear safety gloves when working with high-voltage circuits.
• Disconnect Power Before Working: Always disconnect power before making adjustments to the circuit to prevent electrical shocks.

Conclusion:
The 5V 1 Channel Relay Module is a highly versatile and easy-to-use component for controlling high-voltage devices using low-voltage signals from Arduino, IoT systems, and other microcontrollers. With its single-channel relay, high voltage rating, and simple control interface, this module is a great solution for various applications, including home automation, robotics, security systems, and industrial control.
