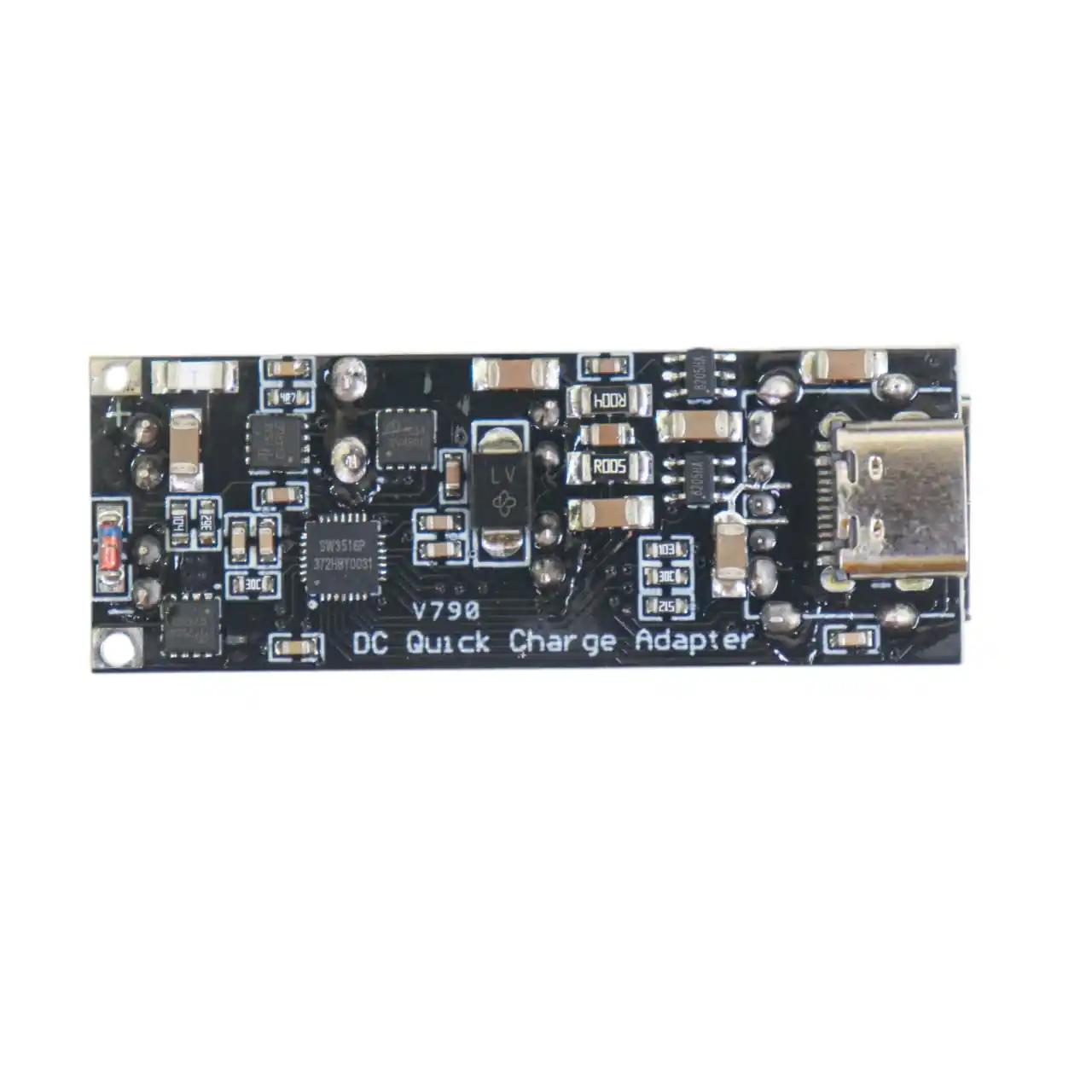

Description: The 60W DC to USB Step-Down Power Module is a high-performance converter designed to convert DC voltage from 6V to 35V into USB Type-C PD 3.0, QC4.0 +, and Type-A QC3.0 for fast charging. This module is perfect for use with 12V and 24V systems, making it an excellent choice for applications in vehicles, solar systems, power banks, and other off-grid power solutions. With the latest QC (Quick Charge) technology, it supports fast charging for modern devices, making it ideal for charging smartphones, tablets, and laptops.
Specifications:
Specification
Details
Input Voltage
6V to 35V DC
Output Voltage
5V, 9V, 12V, 15V, 20V (via USB Type C and Type A)
Max Output Power
60W
USB Type C Output
PD 3.0 with Fast Charging Support (Up to 20V)
USB Type A Output
QC3.0 Fast Charging (5V-9V-12V)
Efficiency
>90%
Operating Temperature
-40°C to 85°C
Dimensions
Compact design, easy to install
Weight
Approx. 50g
Protection Features
Overcurrent, Overvoltage, Short Circuit, Over Temperature
Key Features:
Wide Input Range: Supports input voltage from 6V to 35V DC, making it ideal for 12V and 24V systems, such as solar power setups, vehicles, and batteries.
Dual USB Outputs: Includes USB Type-C PD 3.0 and USB Type-A QC3.0 outputs for fast charging of multiple devices, such as smartphones, tablets, laptops, and power banks.
Efficient Step-Down Conversion: Converts high voltage input (6V-35V) to low voltage USB output with high efficiency, ensuring fast charging and minimal energy loss.
Fast Charging Technology: Supports QC3.0 and PD 3.0 protocols for quick charge of compatible devices, reducing charging time significantly.
Compact & Easy to Install: The small form factor and easy installation design allow for quick replacement in DIY electronics or mobile projects.
Wide Application: Perfect for DC-powered systems, including solar systems, automotive, power banks, battery-powered devices, and more.
Built-in Protection: Equipped with overcurrent, overvoltage, short circuit, and over-temperature protection for safe and reliable operation.
Applications:
Solar Power Systems: Use the module to convert DC from solar panels (12V/24V) to USB charging for devices in off-grid applications.
Vehicles & RVs: Convert DC power from automotive batteries or RVs to fast charge devices on the go.
Mobile Power Banks: Integrate into custom battery packs to provide USB charging for mobile devices and electronics.
DIY Electronics Projects: Use in projects where DC to USB conversion and fast charging are needed for various devices.
Emergency Backup: Provides an effective way to keep your devices powered during power outages or in emergency kits.
Usage Tips:
Choose the Right Input Voltage: Ensure the input voltage is within the recommended range of 6V to 35V DC to avoid damaging the module.
Monitor Device Power Requirements: Ensure the total output power does not exceed the 60W limit to prevent overheating or failure.
Proper Ventilation: Make sure the module has adequate ventilation to prevent overheating during extended use.
Check Compatibility: Make sure the devices you are charging are compatible with QC3.0 or PD 3.0 for fast charging.
Use in a Suitable Housing: For better protection and longevity, consider installing the module in a protective enclosure in your projects.
The 60W DC to USB Power Module provides an efficient and reliable solution for fast charging and DC to USB conversion, making it a versatile addition to various DIY electronics projects, solar power systems, and mobile power applications.
