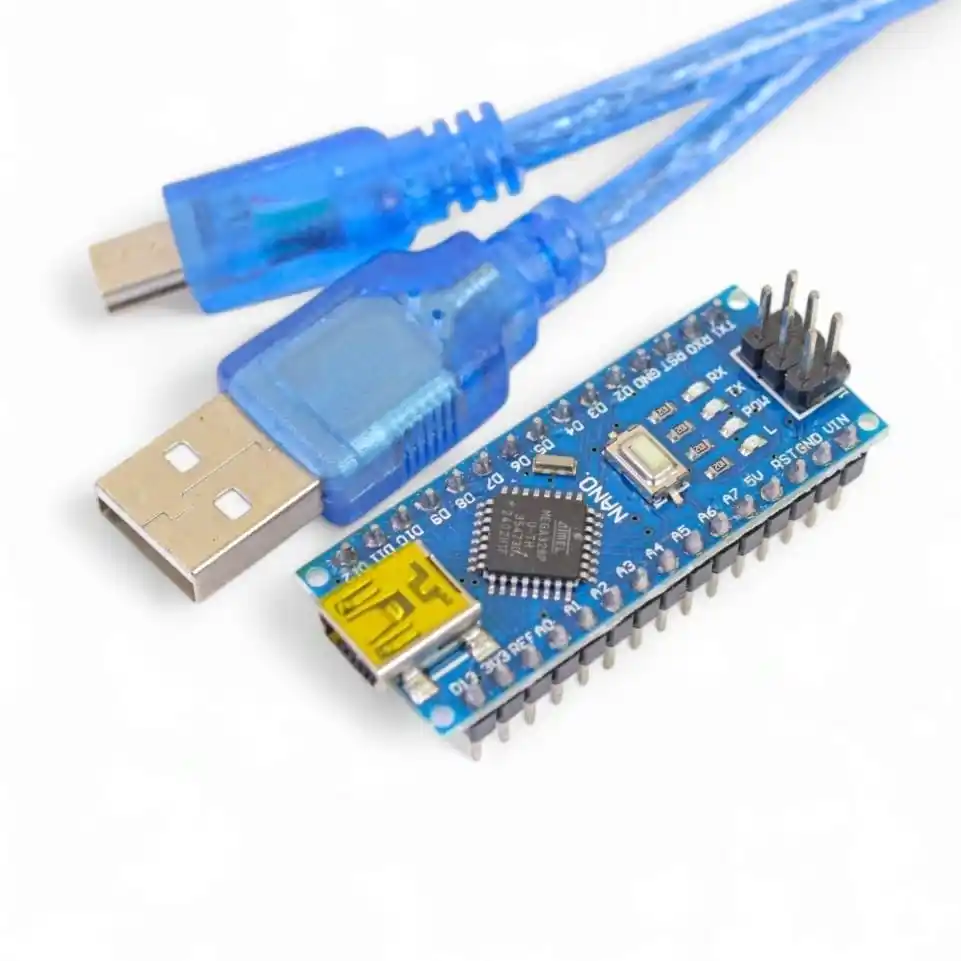

Arduino Nano CH340

Description:
The Arduino Nano CH340 is a compact, easy-to-use microcontroller board based on the ATmega328P chip, similar to the standard Arduino Nano but with the CH340 USB-to-serial chip for communication. This version is more affordable compared to the original Nano, which uses the FTDI USB-to-serial chip. It's a perfect choice for small-scale electronics projects that need a low-cost and versatile microcontroller.

Specifications:

Key Features:

• Affordable USB-to-Serial Chip: Uses the CH340 USB-to-serial converter, which is an affordable and reliable alternative to the FTDI chip, helping to reduce the overall cost of the board.
• Small Form Factor: The Nano is smaller than many other Arduino boards, making it ideal for projects with limited space.
• 5V Operation: Operates at a 5V logic level, compatible with most 5V sensors and modules.
• Full Arduino IDE Support: The board is fully supported by the Arduino IDE, making it easy to program and integrate with other Arduino libraries and shields.
• Breadboard Friendly: With its small size and pin headers, it fits easily into a breadboard, making it an ideal choice for prototyping and small projects.
• Wide Voltage Range: The board can be powered via its micro USB connection or through an external DC power jack, making it flexible for various power sources.
• No Bootloader Pre-installed: This version may not come with a pre-installed bootloader, requiring you to use an external USB-to-serial adapter to load the bootloader before programming.

Application:

• Robotics: The small form factor and versatile I/O make it ideal for robotics projects, including motor control and sensor integration.
• Embedded Systems: Perfect for embedded applications where space and power constraints are crucial.
• IoT Devices: Great for low-power IoT projects that need a compact microcontroller with easy-to-use programming and a range of available libraries.
• Prototyping: The Arduino Nano CH340 is widely used for prototyping on breadboards, allowing for rapid development of electronic systems.
• Wearables: Its small size makes it suitable for wearables, health monitors, and other portable devices.
• Educational Projects: An affordable option for beginners learning about microcontrollers, sensors, and programming.

Usage Tips:

• Installing Drivers: Ensure you have the proper CH340 drivers installed on your computer for the board to be recognized correctly by the Arduino IDE.
• Power Supply: If you're using the Nano with an external power source, make sure the input voltage is between 6V and 12V to prevent damaging the board.
• Programming: The Nano CH340 can be programmed using the Arduino IDE. Just select the correct board and port, and upload your code via the USB port.
• External Programmer: If the board doesn't come with a bootloader, you'll need an external USB-to-serial programmer to load the bootloader before you can start programming it via USB.
• Avoid Overloading Pins: Each I/O pin can provide up to 40mA of current, so avoid drawing too much current from the pins to prevent damaging the microcontroller.
