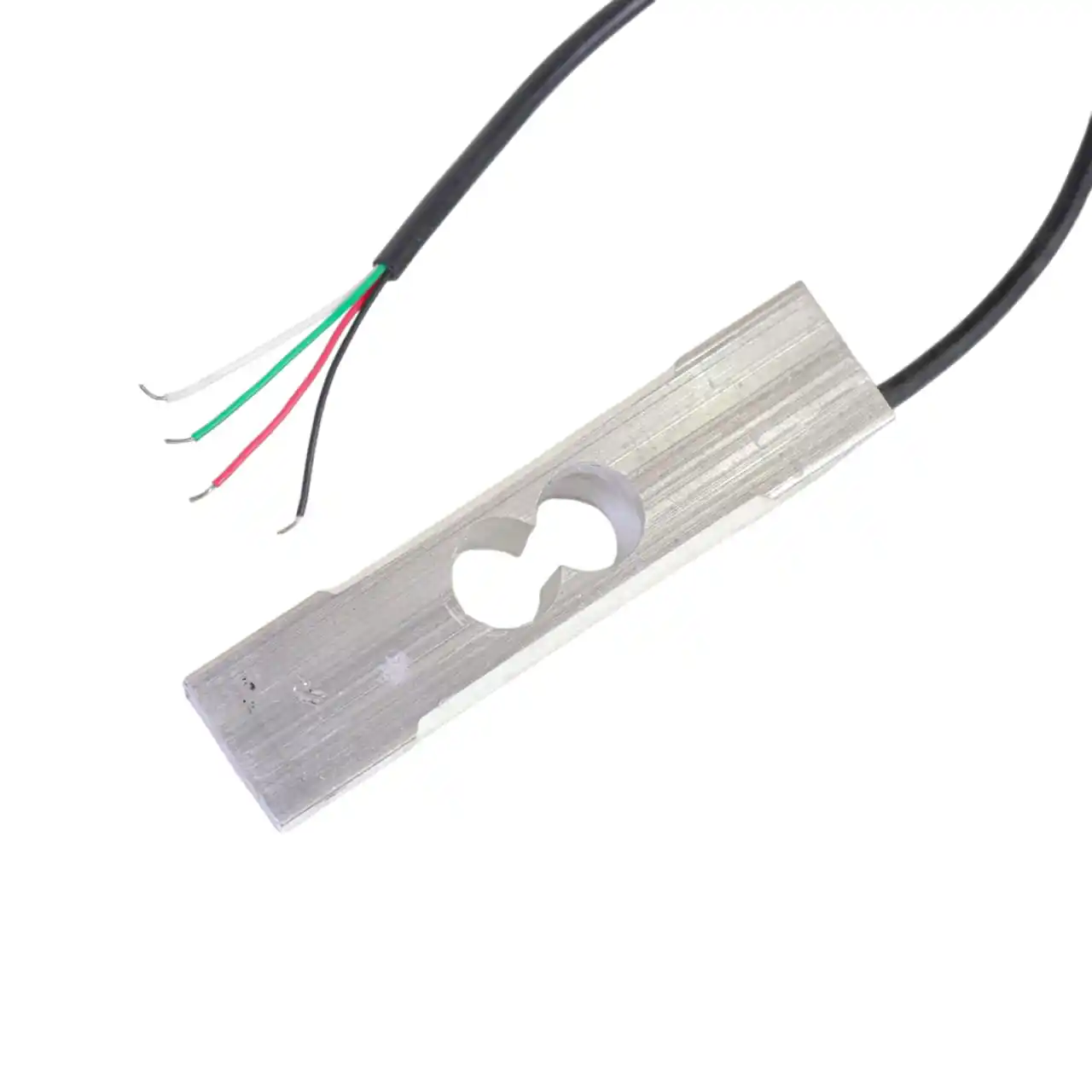

Digital Load Cell Sensor 10KG for Precision Weighing in Portable Electronic Scale Applications
৳320
Description:
The Digital Load Cell Sensor with a 10KG capacity is a high-precision component designed for portable electronic scale systems. It converts mechanical force into an electrical signal, enabling accurate weight measurement. Made from durable materials and equipped with a strain gauge, this sensor ensures consistent performance in various applications, including IoT-based weighing systems and industrial automation.
Specifications
| Parameter | Details |
| Maximum Load Capacity | 10KG |
| Output Signal | Millivolt signal proportional to load |
| Material | High-strength aluminum alloy |
| Sensitivity | 1.0 ± 0.1 mV/V |
| Excitation Voltage | 5V DC (recommended), 10V max |
| Output Resistance | ~1,000Ω |
| Input Resistance | ~1,100Ω |
| Non-linearity | ±0.03% FS |
| Operating Temp. Range | -20°C to 65°C |
| Dimensions | ~80mm x 12.7mm x 12.7mm |
| Cable Length | ~20cm (4-wire configuration) |
Key Features:
- High Precision: Accurate weight measurements with minimal error.
- Compact Design: Lightweight and easy to integrate into small-scale systems.
- Durable Build: Aluminum alloy construction ensures longevity under repeated use.
- Versatile Signal Output: Compatible with analog-to-digital converters (ADCs) for seamless integration with microcontrollers.
- Wide Application Range: Suitable for portable scales, IoT projects, and automation.
Applications:
- Portable electronic weighing scales.
- Kitchen scales and small industrial weighing systems.
- Load measurement in robotics and IoT devices.
- DIY projects involving force or weight detection.
Usage Note:
To achieve optimal results, use a stable platform and connect the load cell to an appropriate amplifier circuit, such as an HX711 module, for signal processing. Calibration is necessary to ensure accuracy in specific applications.
