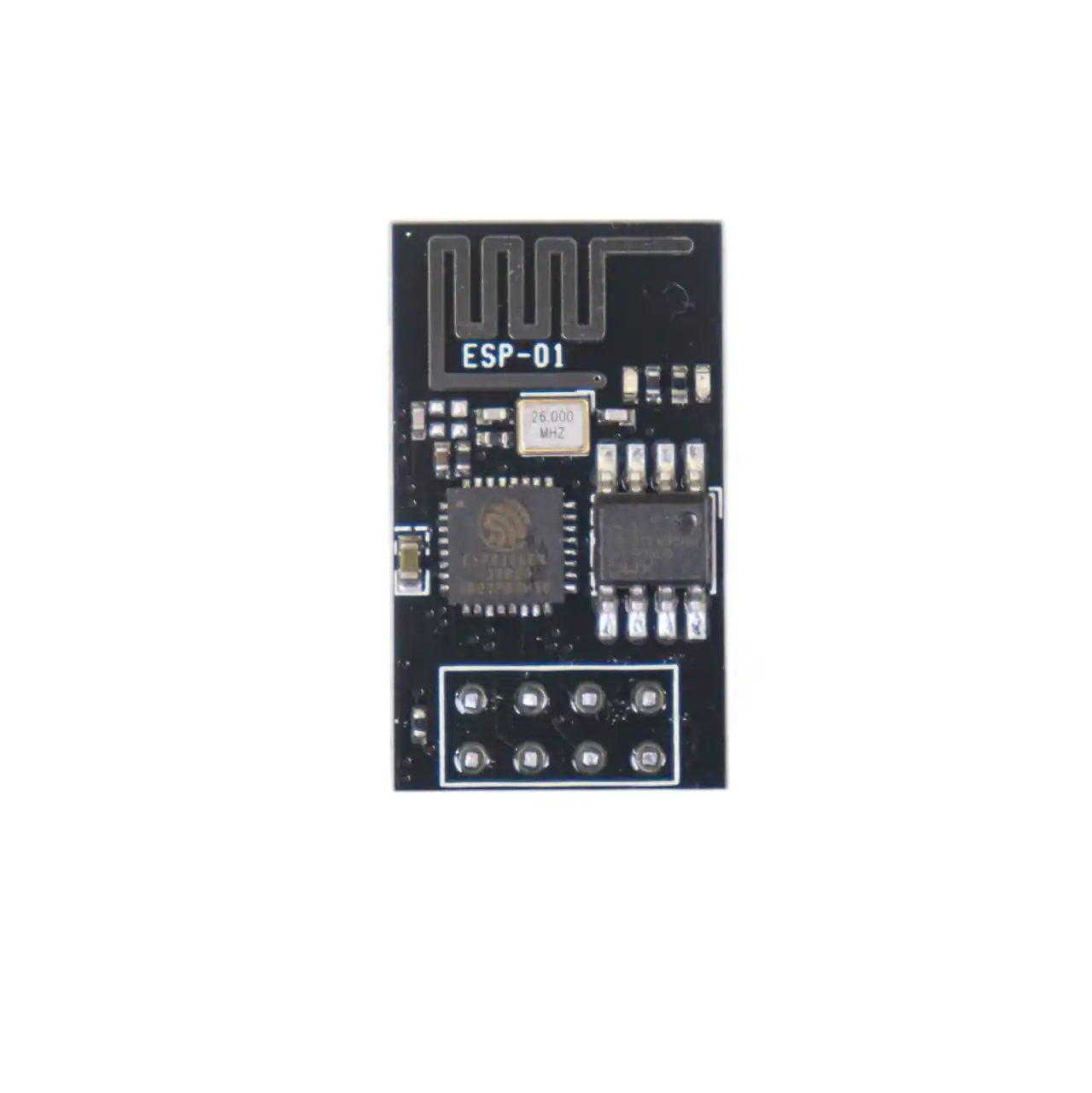

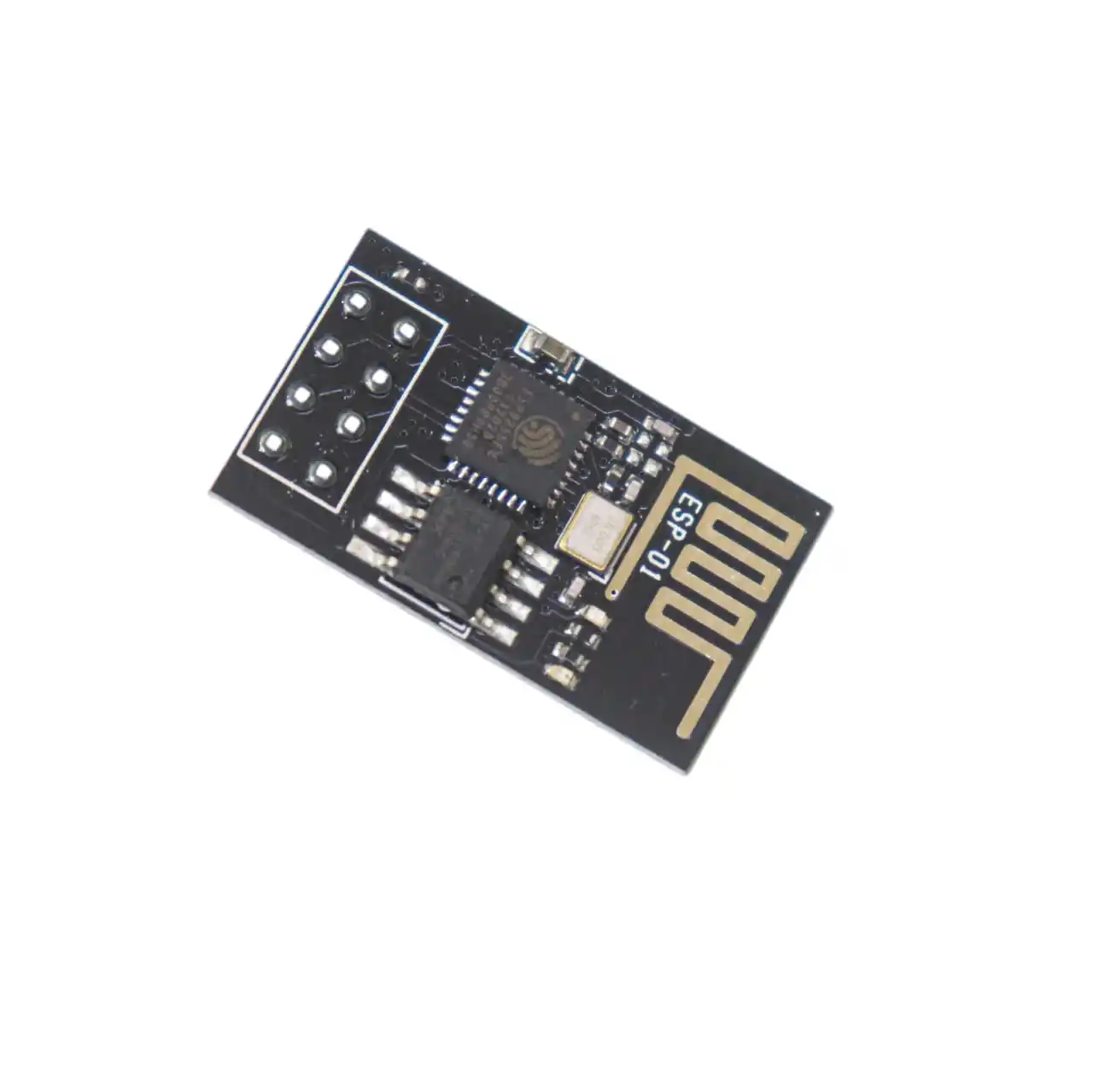

ESP-01 ESP8266 Serial WiFi Module – Compact WiFi Connectivity for IoT Projects

Description:
The ESP-01 is a compact and low-cost WiFi module that uses the ESP8266 chip, designed to provide WiFi connectivity for microcontrollers in Internet of Things (IoT) applications. The module features a built-in TCP/IP stack and can be used to connect a microcontroller (like Arduino) to a WiFi network. It is an ideal solution for adding WiFi to a variety of embedded applications, including home automation, remote control, and sensor data transmission over the internet.

Specifications:

Key Features:

• Compact and Lightweight: Small form factor, ideal for embedding in projects with limited space.
• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered applications.
• Built-in TCP/IP Stack: Allows easy communication with remote servers and cloud platforms.
• Serial Communication: Easy integration with microcontrollers using UART (serial) communication.
• Low Cost: Affordable solution for adding WiFi to your embedded systems.
• Wide Range of Applications: Can be used for home automation, IoT sensors, remote control, and more.

Applications:

• Home Automation Systems: Remotely control devices like lights, fans, and appliances over WiFi.
• IoT Projects: Connect sensors to the internet for real-time data monitoring and remote access.
• Wireless Communication: Use the ESP-01 to create wireless communication between microcontrollers and remote devices.
• Smart Devices: Integrate into smart home gadgets like thermostats, door locks, and security cameras.
• Remote Control Systems: Build WiFi-based remotes to control various devices from anywhere.

Usage Tips:

1. Powering the Module: The ESP-01 requires 3.3V, and it is crucial to use a stable voltage regulator, as it is not 5V tolerant. Ensure the power supply can provide enough current (around 300mA).
2. Connecting to Microcontroller: Use a level shifter or a 3.3V to 5V logic converter for the communication between the ESP-01 and a 5V logic microcontroller (e.g., Arduino).
3. Flash and Program: Use the AT commands or a custom firmware (e.g., NodeMCU or Arduino code) to program the ESP-01 for specific applications.
4. WiFi Configuration: Connect the ESP-01 to a WiFi network by sending AT commands to set up the WiFi SSID and password.
5. Use with Arduino IDE: For easier programming, you can use the Arduino IDE to program the ESP-01 by selecting the ESP8266 board from the board manager and uploading code via the serial connection.

The ESP-01 ESP8266 module is an excellent choice for simple IoT projects that require WiFi connectivity. It is inexpensive, easy to use, and versatile, enabling a wide variety of IoT applications for hobbyists and professionals alike.
