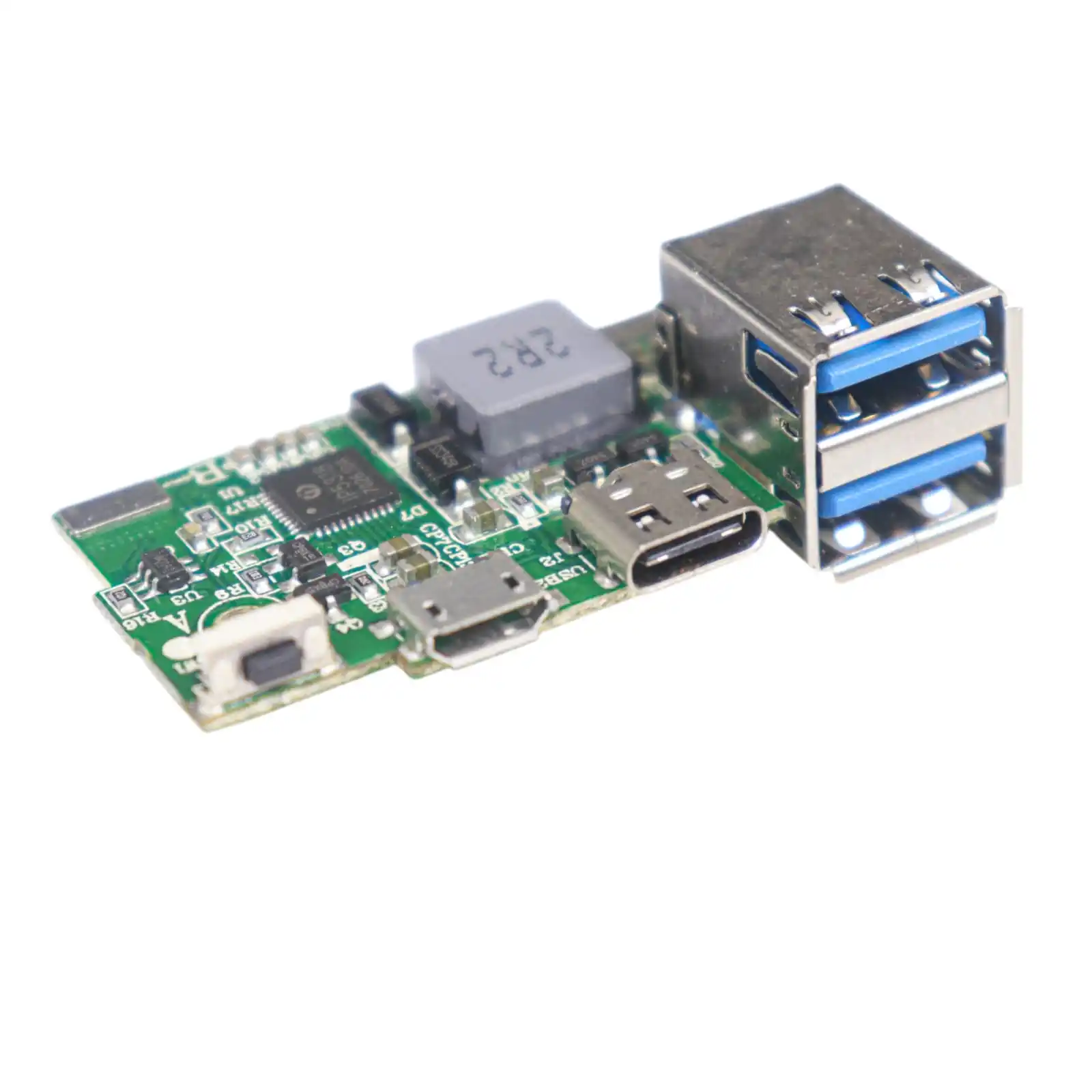

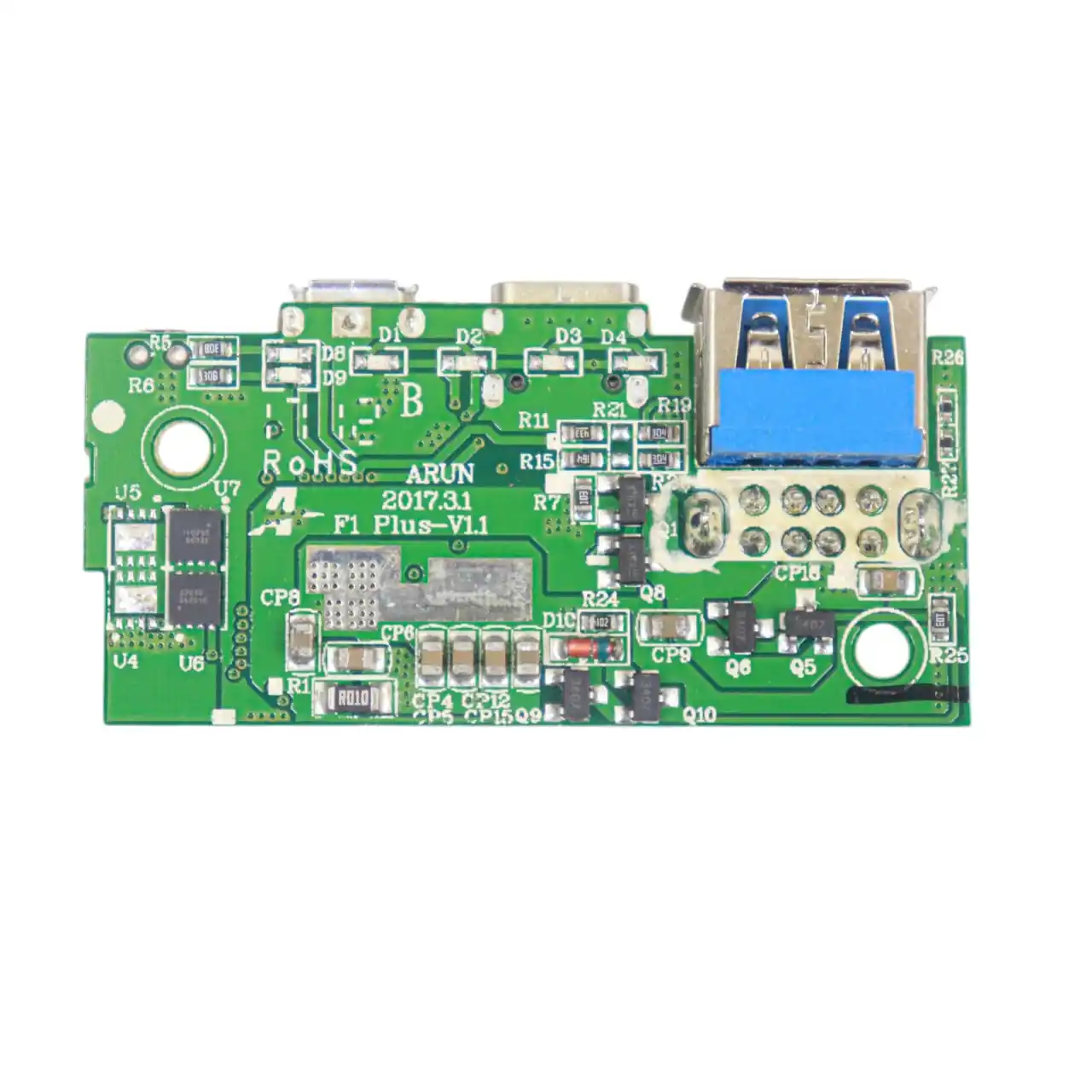

Fast Charge Power Bank Circuit Supporting 18W 3A Quick Charge 3.0, Type-C, Android Charging, 2 USB Output Power Bank Circuit

The Fast Charge Power Bank Circuit is designed to provide rapid charging for a variety of devices, supporting 18W fast charging with 3A output through Quick Charge 3.0 (QC3.0) and Type-C charging standards. This circuit includes 2 USB output ports for simultaneous charging of multiple devices, making it an ideal solution for creating a high-performance portable power bank.

Key Features:

• 18W Quick Charge 3.0 Support: Enables fast charging for compatible devices, delivering up to 18W power at a 3A current, significantly reducing charging times.
• Dual USB Output Ports: Provides two USB output ports, allowing two devices to be charged simultaneously. These ports support QC3.0 and standard charging modes, offering flexibility for different devices.
• Type-C Charging Port: The circuit includes a Type-C input/output port, supporting both fast charging and data transfer, making it compatible with modern smartphones, tablets, and other USB-C devices.
• Fast Charging Compatibility: Works with devices that support QC3.0 fast charging, such as newer Android smartphones, tablets, and power-hungry gadgets.
• Efficient Power Management: Optimizes the power distribution to ensure that both ports provide the required current without overloading or overheating.
• Compact and Versatile: Ideal for creating portable power banks, this circuit is small and efficient, suitable for DIY projects or as part of an off-the-shelf product.
• Safety Features: Equipped with overcurrent protection, overvoltage protection, and short-circuit protection to ensure safe charging and prevent damage to devices or the power bank circuit.

Specifications:

Applications:

• Portable Power Banks: Ideal for DIY power banks that require fast charging capabilities for smartphones, tablets, and other devices.
• Mobile Device Charging: Great for charging Android smartphones, tablets, and other QC3.0 or Type-C supported devices on the go.
• DIY Projects: Perfect for integrating into various electronics projects where fast, reliable power is needed for multiple devices.
• Emergency Power Supply: Provides a reliable and fast source of backup power, ideal for outdoor activities, travel, or emergency situations.
• Multi-Device Charging: Great for environments where multiple devices need to be charged at once, such as during travel, in a car, or in a busy office.

Usage Tips:

• Battery Selection: Choose a battery with sufficient capacity for your needs, typically in the range of 3000mAh to 10000mAh or more, depending on how many devices you need to charge and how often.
• Charging Speed: To take full advantage of QC3.0's fast-charging capabilities, ensure that your devices support Quick Charge 3.0 and use a compatible charger for the power bank itself.
• Monitor Charging: If charging multiple devices, check the power bank's temperature to avoid overheating. It's essential to ensure proper airflow for safe operation.
• Device Compatibility: While the circuit supports QC3.0 fast charging, devices that don’t support QC3.0 will charge at a regular speed, so make sure to check device compatibility before expecting fast charging.
• Port Usage: When using both USB ports simultaneously, ensure that the total power draw does not exceed the output limit of the power bank circuit.

The Fast Charge Power Bank Circuit is an excellent solution for building a high-performance portable charger capable of rapidly charging multiple devices. With its 18W Quick Charge 3.0, Type-C input/output, and dual USB ports, it's perfect for a wide range of devices and applications.
