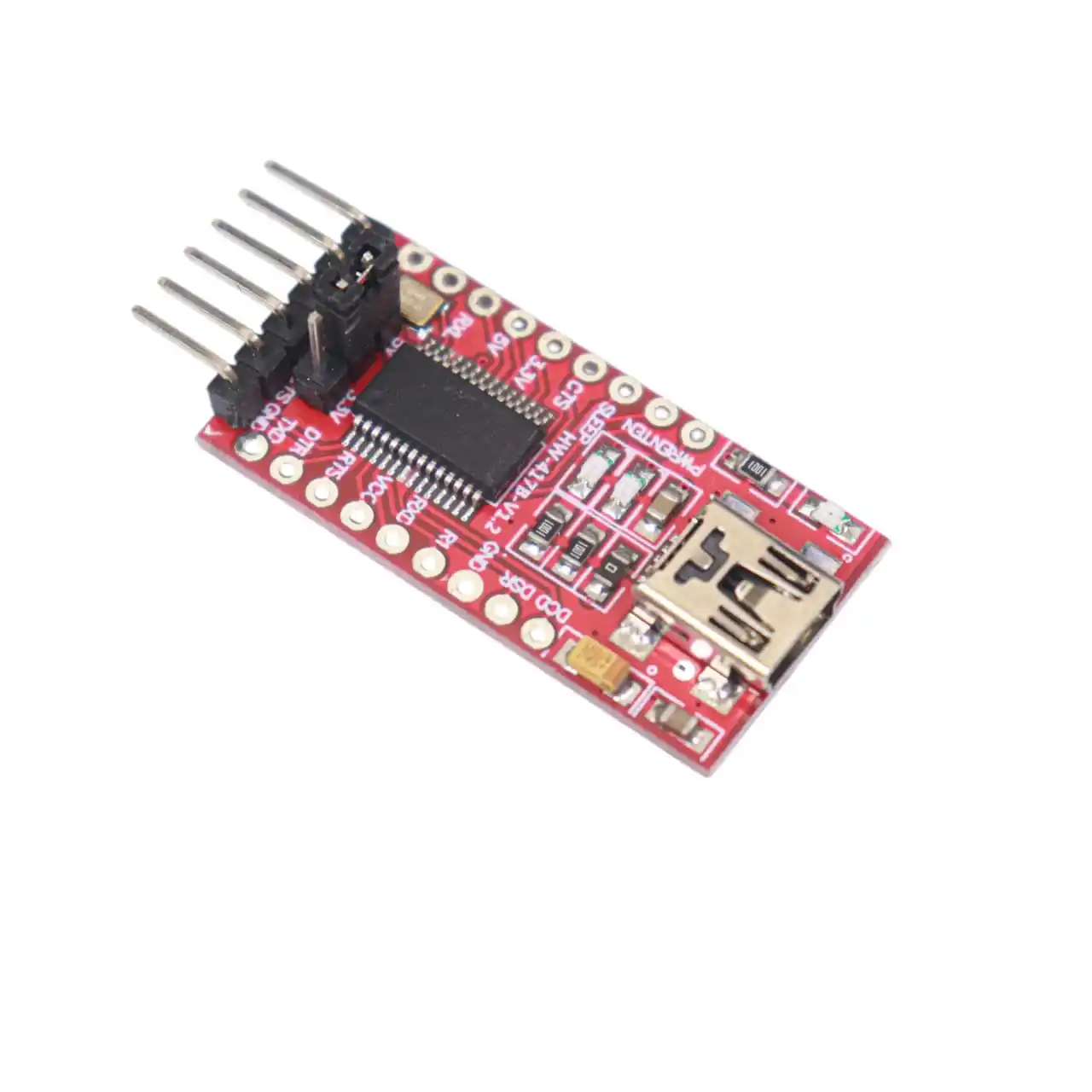

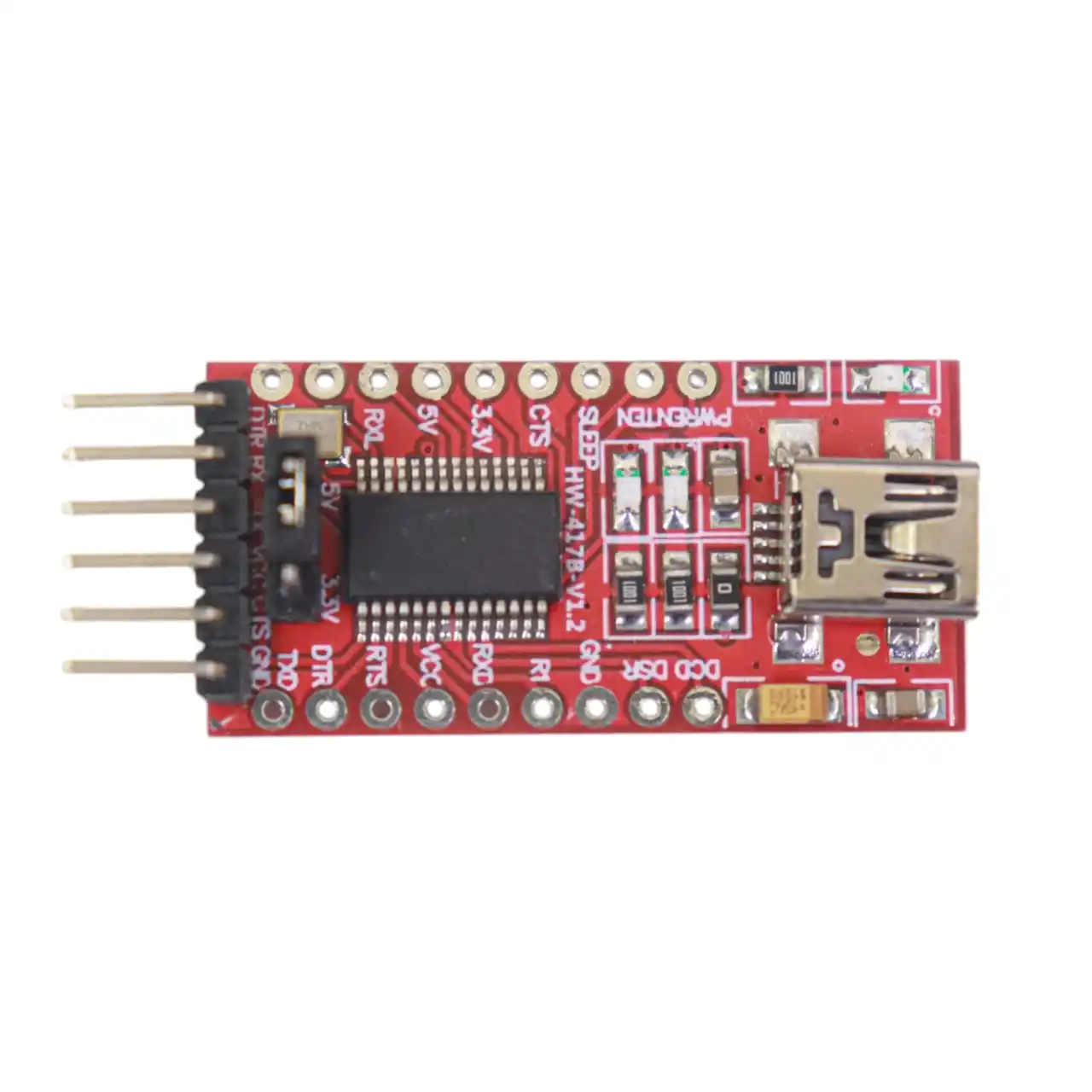

FTDI 232 Mini USB to TTL Converter for Programming Arduino Mini and Pro Mini

Description:
The FTDI 232 Mini USB to TTL Converter is a compact module designed for seamless USB-to-TTL communication, primarily used to program Arduino Mini, Pro Mini, and other microcontrollers. It bridges USB interfaces with TTL serial devices, making it an essential tool for debugging, programming, and data transfer tasks.

Specifications:

Key Features:

• Dual Voltage Support: Works with both 3.3V and 5V systems.
• Plug-and-Play: Easily recognized by most operating systems without additional drivers.
• Integrated FT232RL Chipset: Ensures stable and efficient communication.
• DTR Pin for Auto Reset: Enables automatic resetting of Arduino boards during programming.
• Compact Design: Lightweight and portable, perfect for prototyping and field use.

Applications:

• Arduino Programming: Specifically designed for programming Arduino Mini and Pro Mini boards.
• Microcontroller Debugging: Ideal for establishing UART communication with microcontrollers.
• Serial Communication: Use with TTL serial devices like GPS modules, Bluetooth modules, and sensors.
• DIY Projects: A versatile tool for hobbyists and professionals in electronics.

Usage Tips:

1. Connecting to Arduino Mini/Pro Mini: Connect the module pins to the corresponding Arduino pins (GND, VCC, TX, RX, and DTR for auto-reset).
2. Power Selection: Use the jumper to select between 3.3V and 5V as required by your target device.
3. Driver Installation: Install FTDI drivers if your operating system does not recognize the module.
4. Upload Code: Select the correct COM port in the Arduino IDE and upload your code as you would for any Arduino board.
5. Avoid Cross-Wiring: Ensure TXD is connected to RXD and vice versa between the FTDI module and the target device.

This FTDI 232 Mini USB to TTL Converter is a must-have for anyone working with Arduino Mini, Pro Mini, or other microcontroller platforms, offering reliable performance and ease of use for a variety of programming and debugging tasks.
