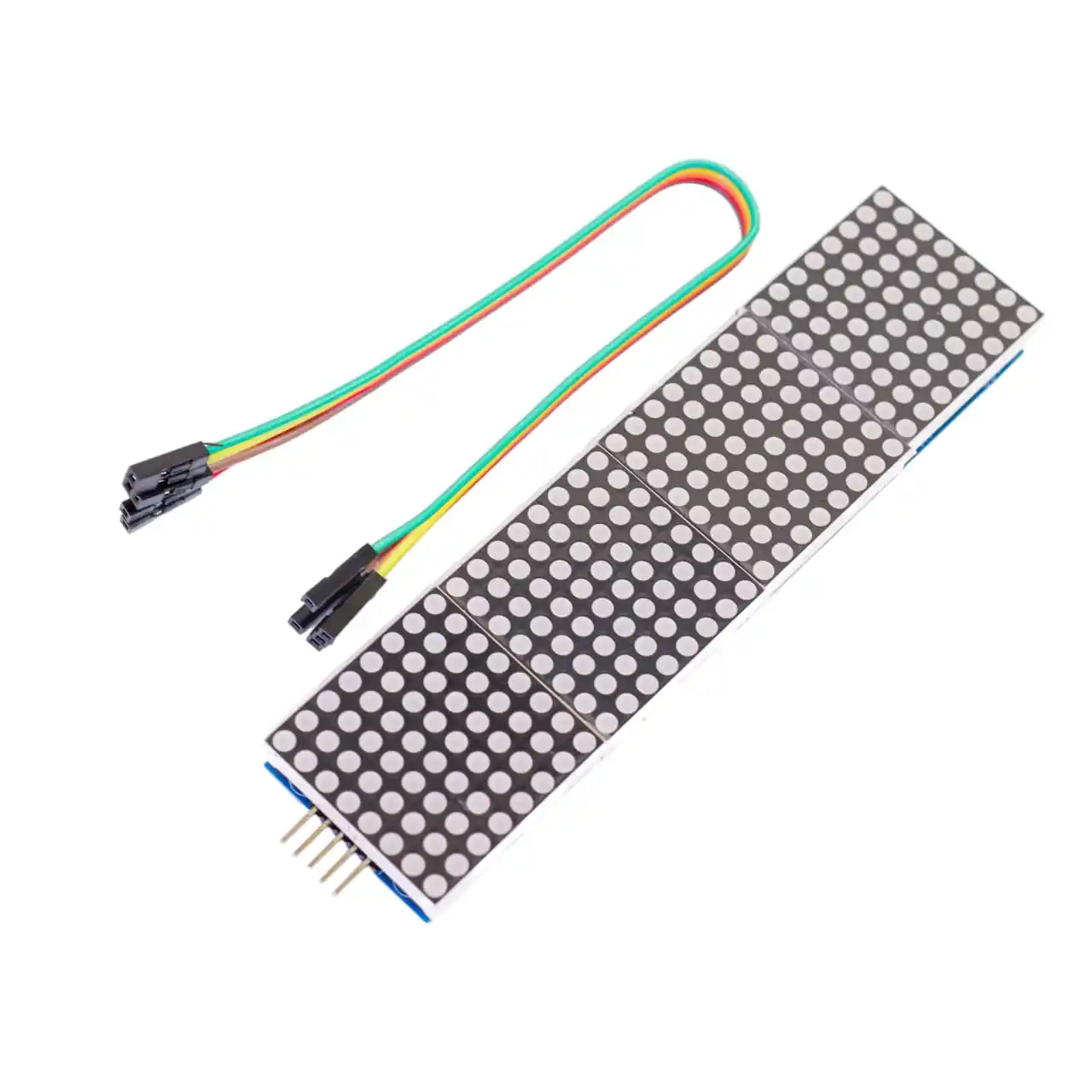

MAX7219 Dot Matrix 4-in-1 Microcontroller Module with 5-Pin Cable for Arduino, Raspberry Pi, and LED Matrix Projects

Description:
The MAX7219 Dot Matrix 4-in-1 Module is a high-performance, compact display solution integrating four 8x8 LED dot matrix displays into a single module. Controlled by the versatile MAX7219 IC, this module is ideal for creating scrolling text, animations, and graphical displays in your electronics projects. The included 5-pin cable ensures seamless connectivity with microcontrollers like Arduino, Raspberry Pi, and others.

Specifications

Key Features

• 4-in-1 Design: Combines four 8x8 LED dot matrix displays into one compact module.
• Efficient Control: Powered by the MAX7219 IC, reducing wiring complexity and providing smooth display transitions.
• Customizable Displays: Perfect for scrolling text, animated graphics, and numerical data visualization.
• Daisy-Chaining Support: Easily connect multiple modules for extended displays.
• High Brightness: Bright red LEDs ensure excellent visibility in varying lighting conditions.
• Included 5-Pin Cable: Simplifies connection with your microcontroller or development board.

Applications

• Digital Signage: Ideal for creating scrolling text displays for events, shops, or classrooms.
• DIY Projects: Add animations, clocks, or status indicators to your projects.
• Educational Kits: Teach programming concepts and display control techniques.
• IoT Dashboards: Show real-time data like weather updates or sensor readings.
• Gaming Displays: Build scoreboards or retro gaming interfaces.

Wiring with Arduino (SPI Interface):

Usage Tips:

• Use the LedControl library for Arduino to simplify programming.
• Chain multiple modules for larger displays; connect the DOUT pin of one module to the DIN pin of the next.
• Adjust brightness using the library’s intensity control function for energy efficiency.
• Ensure proper power supply for stable performance, especially when chaining multiple modules.
