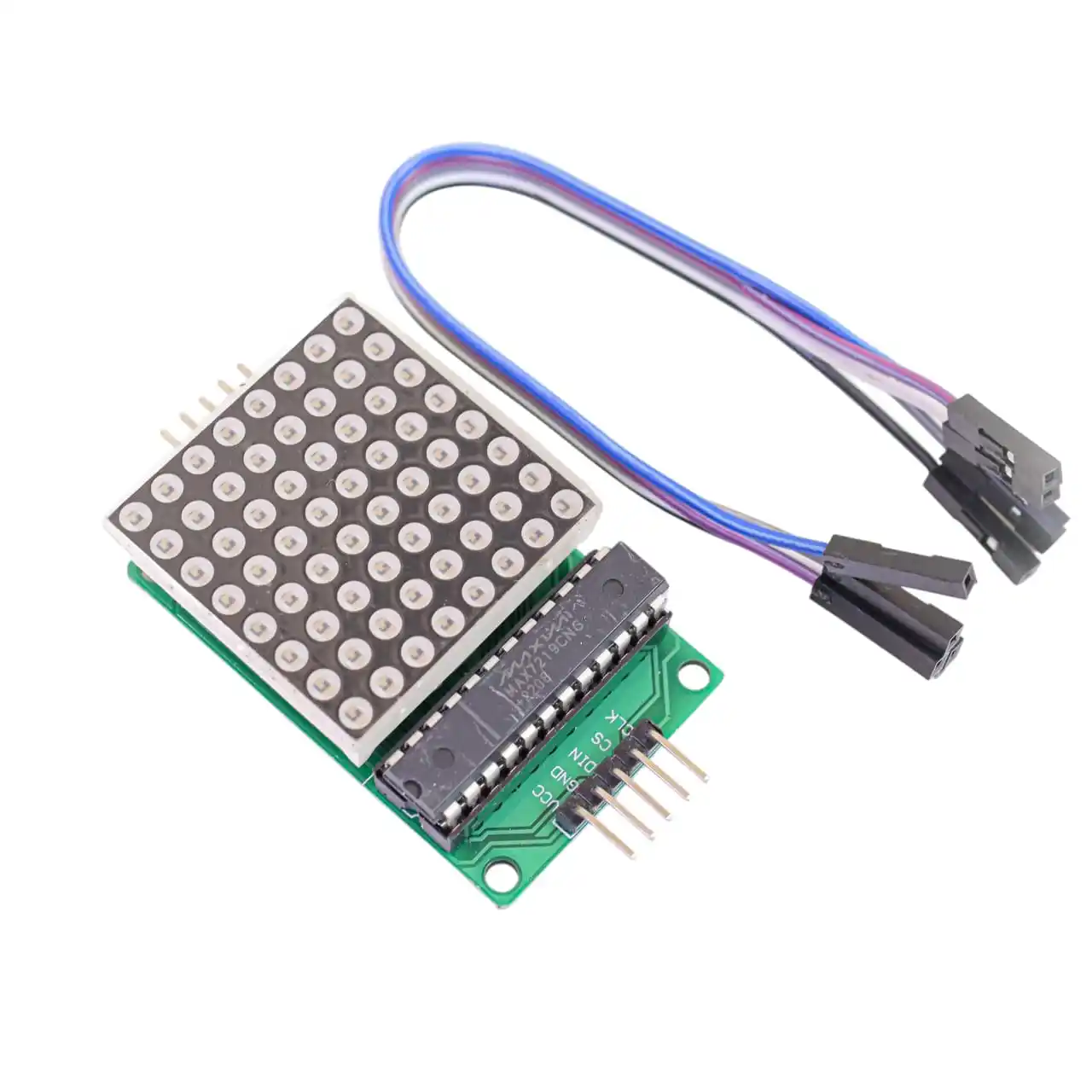

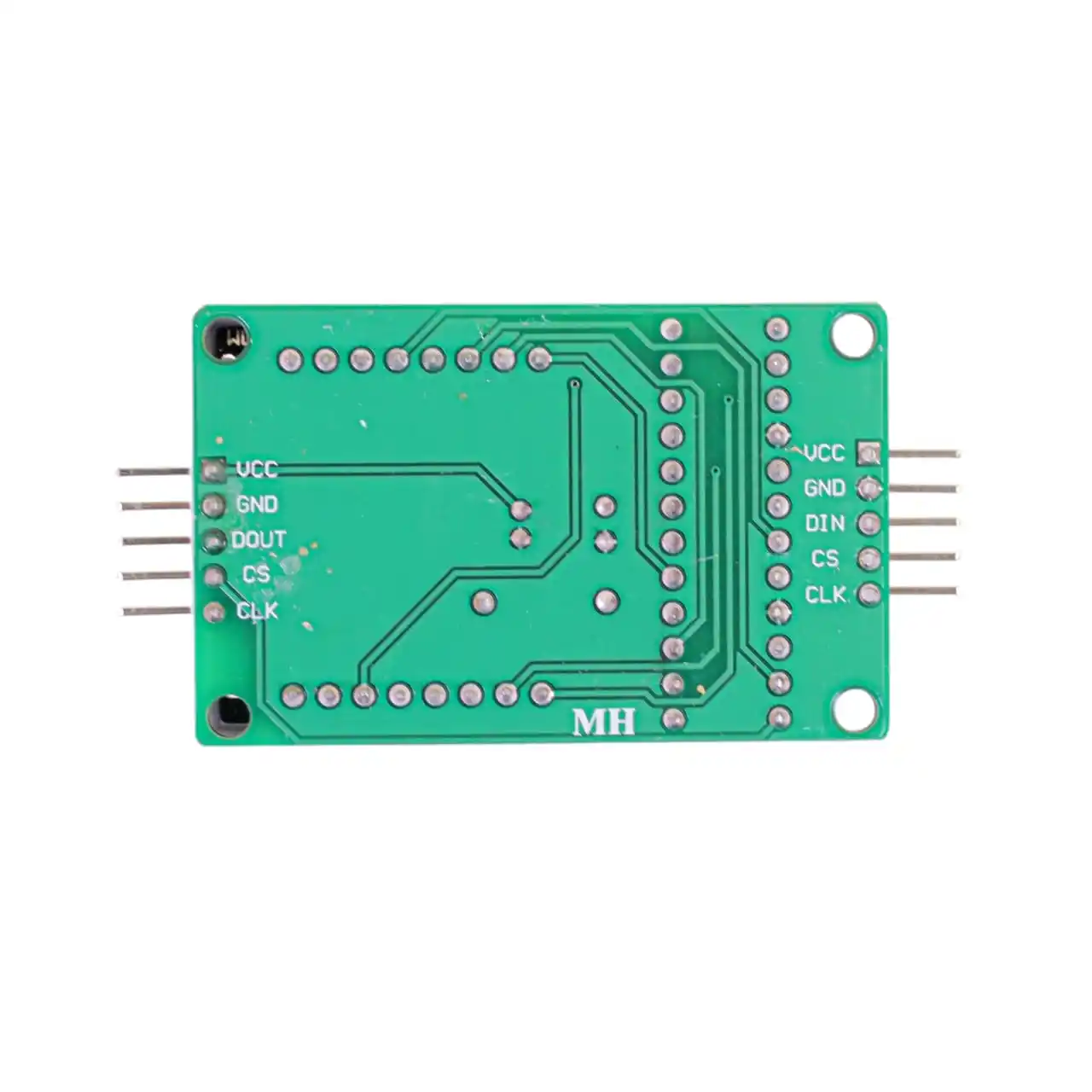

MAX7219 Dot Matrix Module for Arduino Microcontroller 8×8 Dot Display with 5 Pin Line MAX7219 Display – High-Resolution LED Matrix for DIY Projects and Displays

Description:
The MAX7219 Dot Matrix Module for Arduino Microcontroller is an advanced and efficient display module that uses an 8×8 LED matrix to show various characters, numbers, or graphics. It utilizes the MAX7219 IC, which allows easy interfacing with microcontrollers like Arduino via just 5 pins, simplifying the wiring and programming process. This module is widely used in projects that require high-quality visual displays, such as digital clocks, message boards, and custom animation displays. With its compact design and high-resolution output, the MAX7219 Dot Matrix is perfect for a variety of applications that need a clear and detailed LED display.

Specifications

Key Features:

• 8×8 Dot Matrix Display: Allows for clear and sharp text, numbers, and graphic displays, making it ideal for digital clocks, message boards, and custom visual displays.
• MAX7219 IC: Uses the efficient MAX7219 driver, which reduces the number of pins needed for control, providing easier wiring and better performance.
• Low Power Consumption: Consumes very little power, making it perfect for battery-operated and portable projects.
• Flexible Display Options: Can be used to display characters, numbers, and even custom graphics with great flexibility and customization.
• Easy Arduino Integration: Compatible with Arduino and other microcontrollers, easily interfaced through SPI communication, allowing for simple programming and control.
• Expandable: Multiple modules can be connected together for larger displays, ideal for creating scrolling messages or large-scale visual effects.

Applications:

• Digital Clocks: Create a stylish and customizable digital clock with adjustable time and date displays.
• Message Boards: Use for displaying text messages, advertisements, or other dynamic content.
• Scoreboards: Ideal for sports or gaming scoreboards, providing clear and readable score displays.
• Animation Displays: Display animations, logos, or patterns with smooth transitions and movement.
• DIY Projects: Great for DIY electronics and Arduino projects, where a compact yet high-resolution display is needed for showcasing information.

Usage Note:
For optimal performance, ensure that the MAX7219 module is powered with a stable 5V DC source. Adjust brightness settings based on the application and desired display visibility. Multiple MAX7219 modules can be chained together to create larger displays, with each module being controlled via SPI to create a seamless and expansive visual output.
