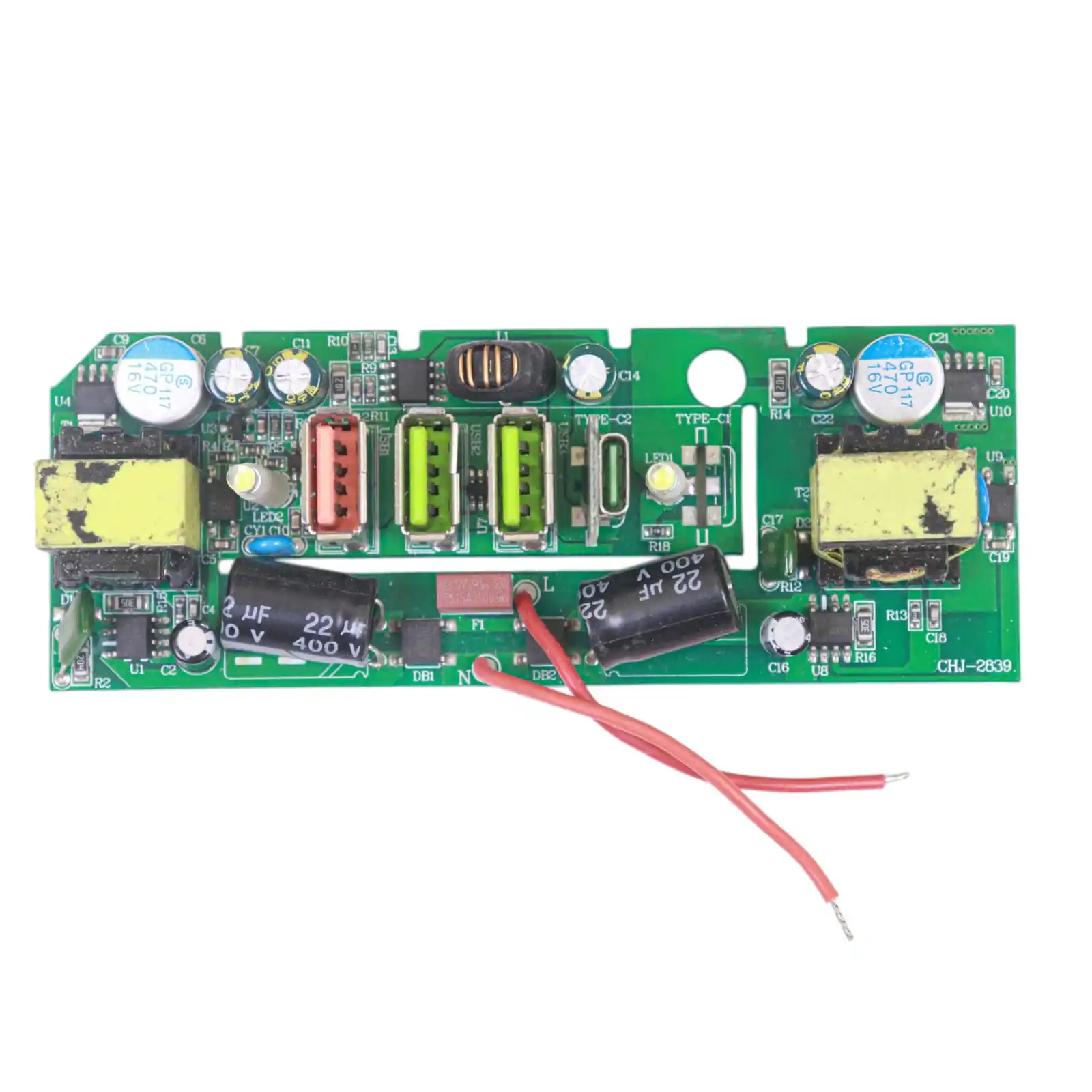

PD20W QC 3.0 Fast Charging Board 220V to 5V 9V 12V Dual USB Type C Port SMPS Adapter

The PD20W QC 3.0 Fast Charging Board is a high-efficiency SMPS (Switched-Mode Power Supply) adapter that converts 220V AC input into 5V, 9V, or 12V DC output, making it suitable for fast charging devices with dual USB Type C ports. This versatile adapter supports PD (Power Delivery) 20W and Quick Charge 3.0 (QC 3.0) standards, offering high-speed charging for a wide range of USB-powered devices.

Key Features:

• Multiple Output Voltages: Provides 5V, 9V, and 12V output options, allowing you to charge devices with varying voltage requirements.
• Fast Charging Technology: Supports QC 3.0 and PD 20W fast charging, enabling faster charging speeds for compatible devices like smartphones, tablets, and more.
• Dual USB Type C Ports: Equipped with two Type C ports, allowing you to charge multiple devices simultaneously.
• SMPS Technology: Uses Switched-Mode Power Supply (SMPS) for high efficiency, converting AC power to DC with minimal heat generation and energy loss.
• 220V to 5V/9V/12V Conversion: Converts 220V AC input into various DC voltages, making it ideal for charging devices that need higher voltage for fast charging.
• Compact and Durable Design: Designed for easy integration into projects requiring a reliable power source with high efficiency.
• Overcurrent, Overvoltage, and Short Circuit Protection: Ensures the safety of both the adapter and the devices being charged with built-in protection features.

Specifications:

Applications:

• Fast Charging for Smartphones: Perfect for charging smartphones, including those with USB Type C ports, supporting Quick Charge and Power Delivery protocols.
• Tablet Charging: Can charge tablets and other USB-C devices with higher voltage requirements.
• Multi-Device Charging: With dual USB Type C ports, this board can charge two devices simultaneously, making it a great solution for families or users with multiple devices.
• DIY Projects: Ideal for integrating into custom charging stations or DIY power supply projects that require efficient, fast charging solutions.
• Portable Chargers: Useful for building portable charging solutions that require the capability to switch between multiple voltages.

Usage Tips:

• Selecting the Right Voltage: Ensure you choose the appropriate voltage (5V, 9V, or 12V) for your device to avoid damaging it. The adapter will adjust based on the device’s needs if it's PD or QC-compatible.
• Avoid Overloading: Do not exceed the 3A output current limit for each port to prevent overheating or damage to the adapter.
• Device Compatibility: Make sure your devices are compatible with Quick Charge 3.0 or Power Delivery 20W to take advantage of the fast-charging capabilities.
• Use in Well-Ventilated Area: As with all high-power adapters, ensure it is placed in a well-ventilated area to prevent overheating, especially when charging multiple devices.

The PD20W QC 3.0 Fast Charging Board with Dual USB Type C ports is a powerful, efficient, and versatile charging solution that offers fast charging for a wide variety of devices. Whether you're looking to build a charging station or integrate this adapter into your custom electronics project, it provides a reliable way to charge multiple devices with ease.
