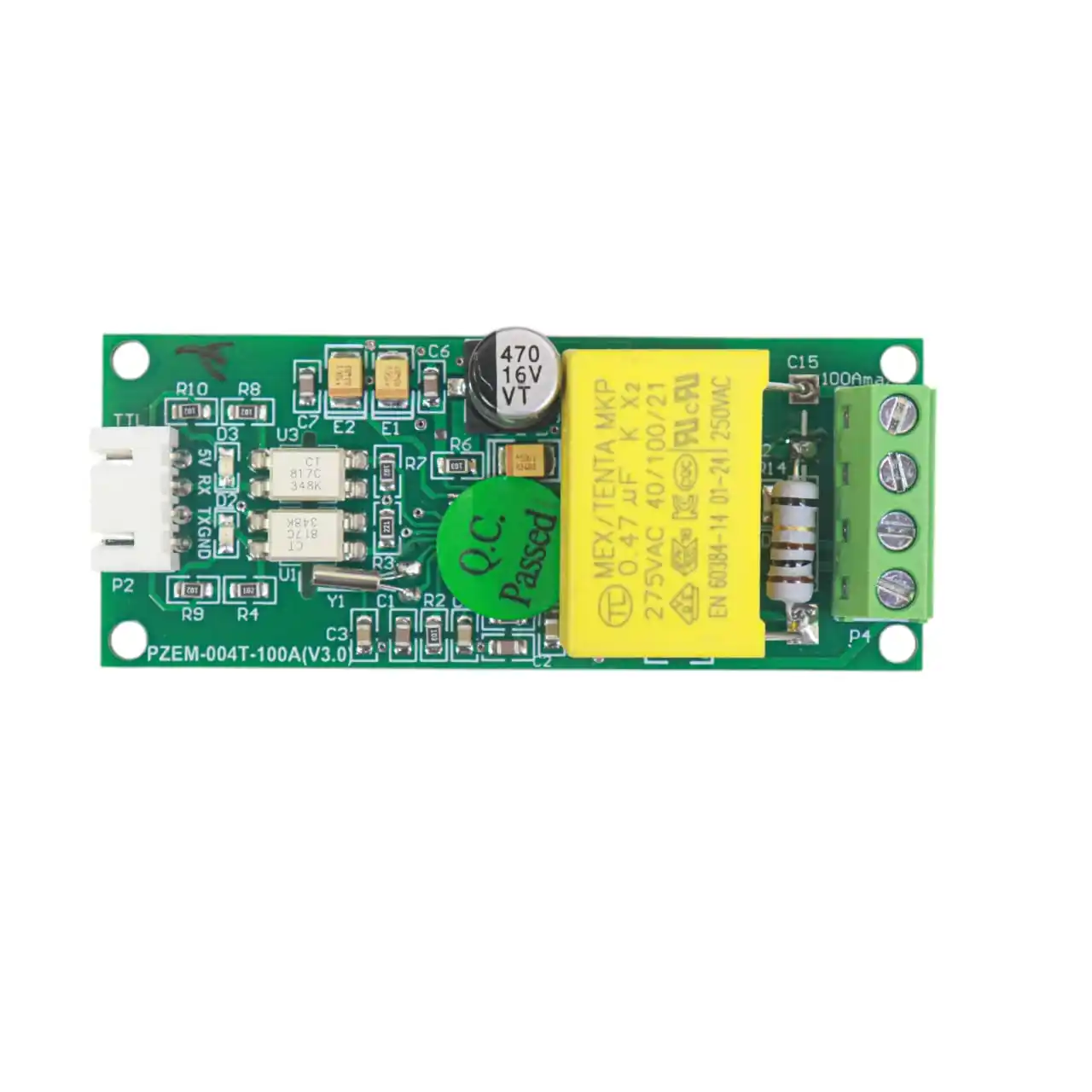

PZEM-004T AC Multi-function Electric Energy Metering Power Monitor with Closed CT

Description:
The PZEM-004T is an advanced AC multi-function energy meter designed for measuring and monitoring various electrical parameters in AC circuits. It supports a wide voltage range from 80V to 260V AC and can measure current, voltage, power, energy, and frequency with high accuracy. The energy meter features a closed current transformer (CT) for safe and accurate current measurement. It is ideal for use in applications where real-time power monitoring is required, such as in homes, industrial settings, or for DIY electrical projects.

Specifications:

Key Features:

• Wide Voltage Range: Supports an operating voltage range from 80V to 260V AC, making it suitable for use in various regions with different power supply standards.
• High Current Rating: Can measure currents up to 100A with a maximum power rating of 22000W, ideal for both residential and industrial applications.
• Multiple Parameters Measurement: Capable of measuring key electrical parameters like current, voltage, active power, apparent power, energy consumption, and frequency.

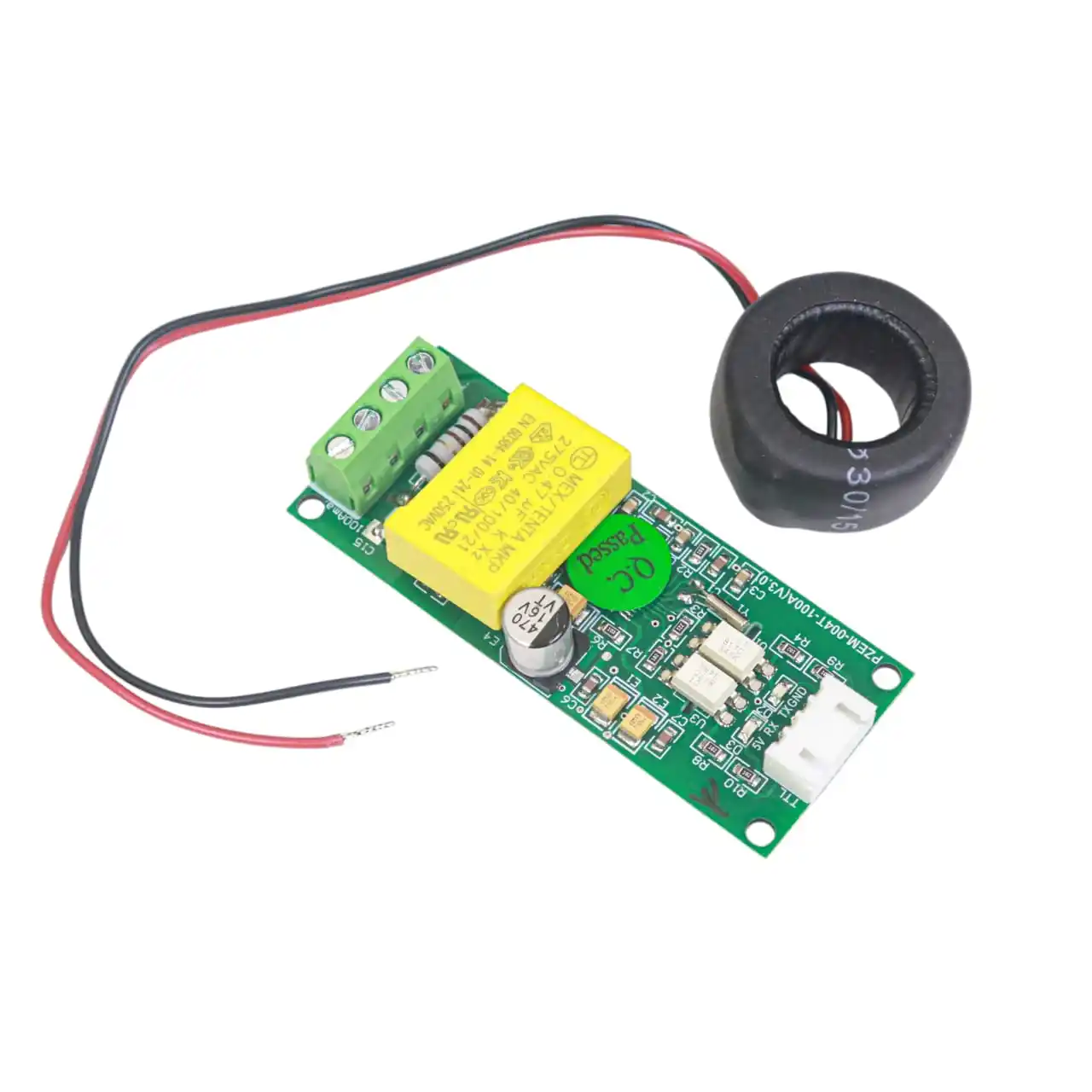

• Closed CT: The energy meter comes with a closed current transformer for precise and safe measurement of AC current, minimizing the risk of electrical shock.
• Measurement Accuracy: Offers a high accuracy of 1.0%, providing reliable readings for monitoring and analysis of electrical systems.
• Power Factor Measurement: Can calculate the power factor, allowing for better understanding and optimization of the efficiency of electrical systems.
• Real-time Display: Displays real-time measurements on a digital screen, providing immediate feedback on system performance.

Applications:

• Home Electrical Monitoring: Perfect for monitoring energy consumption and efficiency in residential electrical systems.
• Industrial Power Systems: Ideal for use in industrial energy management and monitoring systems to track current, voltage, power, and energy consumption.
• Electrical Projects: Suitable for DIY projects and Arduino-based power monitoring systems.
• Renewable Energy Systems: Can be used to monitor solar power systems and track the power output of solar panels and other renewable energy sources.
• Power Factor Optimization: Helps in optimizing the power factor in both residential and industrial environments by measuring and analyzing the readings.

Usage Tips:

1. Correct CT Installation: Ensure that the closed current transformer (CT) is installed properly around the live wire for accurate current measurement.
2. Voltage and Current Limits: Do not exceed the rated voltage of 260V and the current limit of 100A to avoid damaging the device or causing inaccurate measurements.
3. Safe Handling: When connecting the meter to the electrical circuit, follow proper safety precautions to prevent electric shock or damage to the equipment.
4. Monitor Power Consumption: Use this device to monitor power consumption regularly to track your energy usage and make adjustments to reduce unnecessary electricity consumption.
5. Calibration: If needed, the meter can be calibrated to ensure maximum accuracy in energy measurement over time.

The PZEM-004T is a versatile and reliable tool for monitoring and managing electrical power in various environments. Its ability to measure multiple electrical parameters makes it a crucial instrument for efficient energy use and maintenance of electrical systems.
