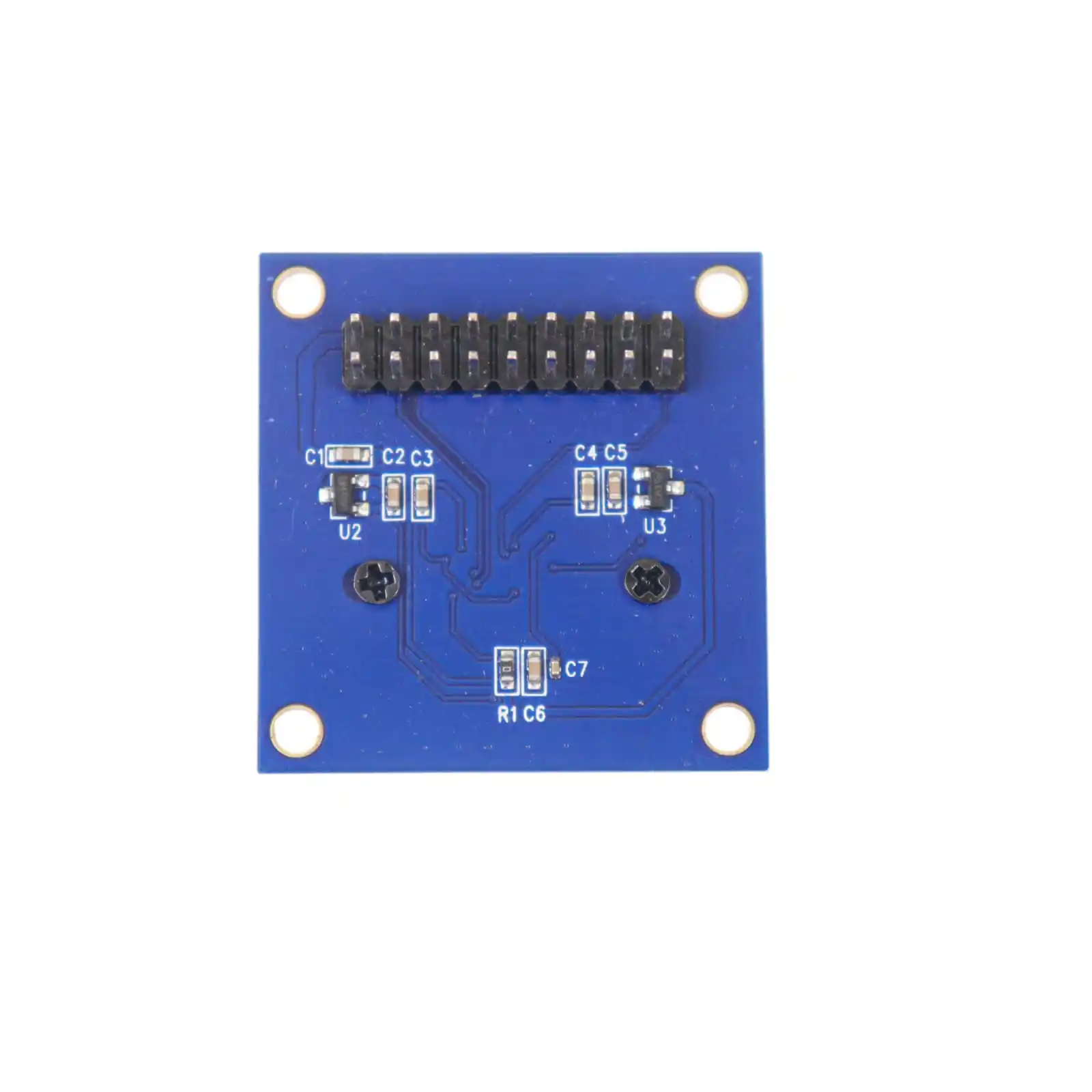

Teyleten Robot SongHe OV7670 640x480 0.3Mega 300KP VGA CMOS Camera Module I2C for Arduino ARM FPGA
৳450
Description:
The Teyleten Robot SongHe OV7670 Camera Module is a compact, high-performance VGA camera designed for integration with microcontrollers such as Arduino, ARM, and FPGA. It features a 0.3-megapixel sensor capable of capturing 640x480 VGA resolution images, making it suitable for a wide range of applications, including image processing, surveillance, robotics, and vision systems. The module uses the I2C interface for communication, making it easy to interface with various microcontrollers and development platforms.
Specifications:
| Feature | Specification |
|---|---|
| Camera Sensor | OV7670 CMOS |
| Resolution | 640x480 VGA (0.3 Megapixels) |
| Image Output | RGB565 |
| Interface | I2C (Inter-Integrated Circuit) |
| Voltage Supply | 3.3V to 5V |
| Power Consumption | Low Power Consumption |
| Operating Temperature | -20°C to +70°C |
| Frame Rate | 30fps @ 640x480 |
| Lens Type | Fixed Focus |
| Module Size | 27mm x 30mm (Approx) |
| Mounting Holes | Yes, for easy integration into projects |
| Operating Modes | Snapshot, Continuous |
| Color Depth | 16-bit (RGB565) |
Key Features:
- VGA Resolution: The OV7670 module provides a 640x480 resolution, delivering high-quality images at 30 frames per second, suitable for real-time image processing and other vision applications.
- Low Power Consumption: Designed to operate with low power, making it ideal for battery-powered projects or embedded systems where efficiency is important.
- I2C Interface: The I2C communication interface simplifies connectivity with microcontrollers and development platforms, requiring only two wires for data transfer.
- Compact Design: With a small form factor, it can be easily integrated into projects without taking up much space, especially in robotics, drones, or embedded systems.
- Versatile Applications: The camera module is perfect for use in robotic vision systems, surveillance cameras, smart devices, and DIY image processing projects.
- Wide Operating Voltage Range: Can be powered using a wide range of voltages (3.3V to 5V), making it compatible with most microcontroller platforms like Arduino, ARM, and FPGA.
Applications:
- Robotics Vision: Used in robots to capture visual data for object detection, navigation, and environmental mapping.
- Surveillance Systems: Ideal for low-cost surveillance cameras, security systems, or monitoring stations.
- Machine Vision Systems: Used in automated systems for quality control, inspection, or part recognition.
- Image Processing Projects: Suitable for DIY or educational projects that involve real-time image processing or computer vision algorithms.
- IoT Devices: Can be integrated into Internet of Things (IoT) applications requiring remote visual data transmission or camera-enabled monitoring.
Usage Tips:
- Power Supply: Ensure the camera is powered within the recommended voltage range (3.3V to 5V) to avoid damaging the module.
- I2C Communication: Use the I2C interface to communicate with microcontrollers, and make sure the correct I2C address and configuration are set for proper operation.
- Lens Adjustment: The fixed focus lens works best at a specific range, so make sure to position the camera appropriately for optimal image clarity.
- Image Capture: The OV7670 can capture images in either snapshot or continuous modes. Make sure the chosen mode is compatible with the specific needs of your project.
- Microcontroller Support: While it works with most microcontrollers, ensure the selected platform supports the I2C interface and the required libraries for image capture and processing.
