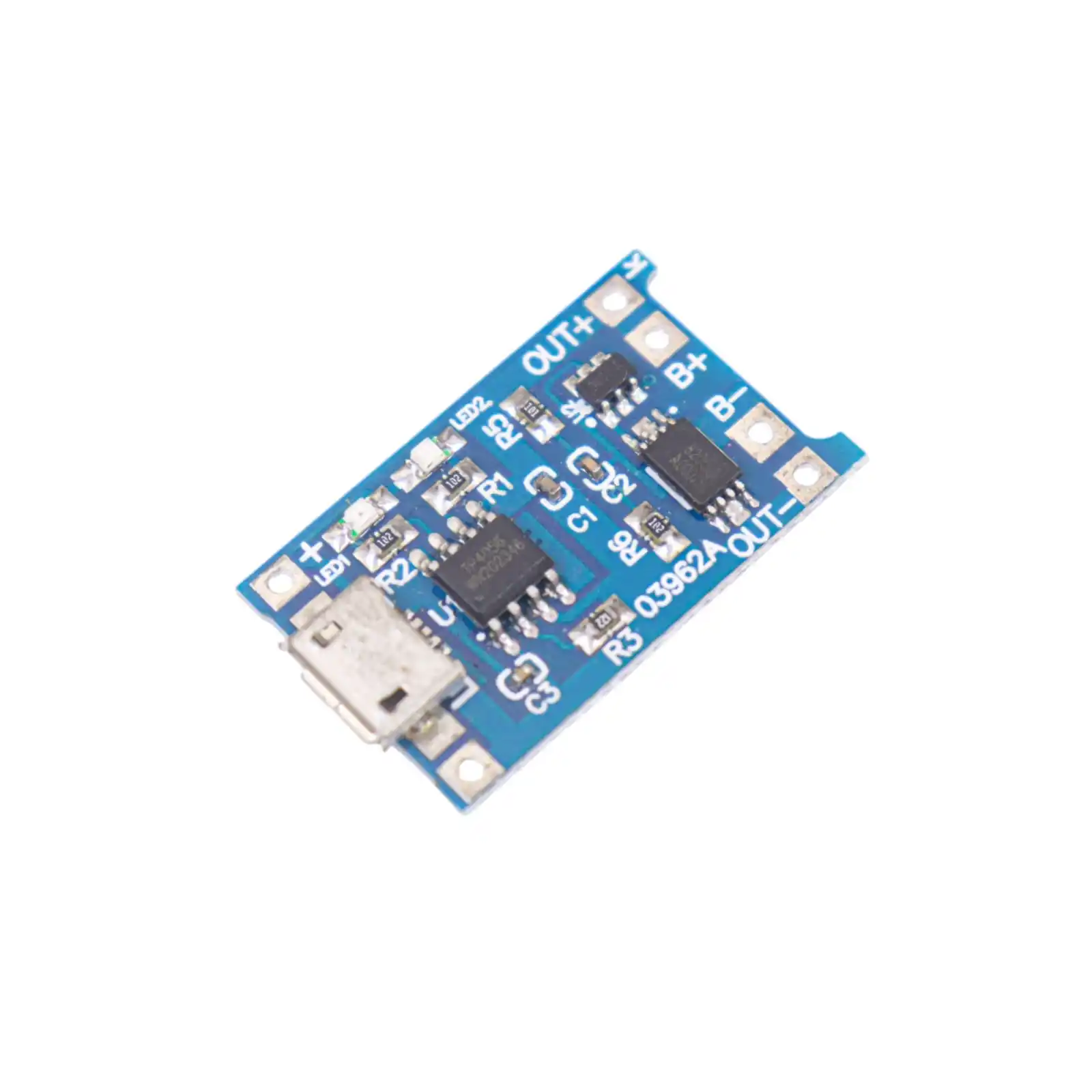

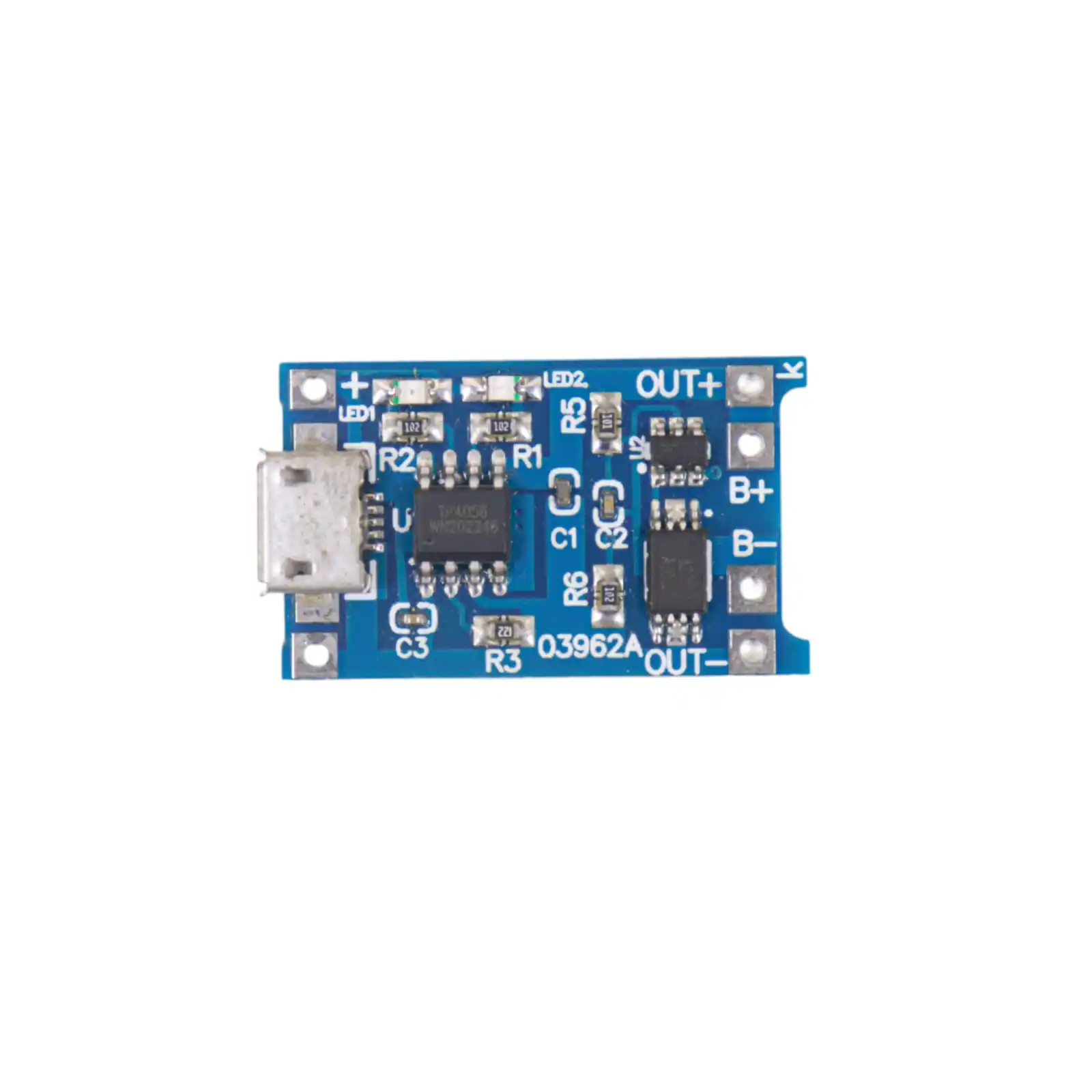

TYPE B TP4056 Battery Charger Circuit Module with Battery Protection for 3.7V Li-ion Batteries

Description:
This module is a versatile and efficient solution for charging 3.7V Li-ion batteries. Featuring the TP4056 charging IC and integrated battery protection, it supports USB Type-B input and delivers up to 1A charging current. The module ensures safe charging and protects batteries against overcharging, over-discharging, and short circuits.

Specifications:

Key Features:

• USB Type-B Input: Easy to use with standard USB Type-B cables for connectivity and charging.
• TP4056 Charging IC: Provides stable and efficient charging for single-cell Li-ion batteries.
• Battery Protection Circuit: Protects against overcharging, over-discharging, and short circuits, enhancing battery lifespan.
• LED Indicators: Convenient charging status indicators with red for charging and blue for full charge.
• Compact Size: Lightweight and small, suitable for portable projects and devices.

Applications:

• DIY Electronics: Charging solution for custom battery-powered projects.
• Portable Devices: Perfect for charging Li-ion batteries in portable devices like power banks and wearables.
• Battery Management Systems: Ensures safe and effective charging in battery-based systems.
• Prototyping: Ideal for experiments and developing battery-powered circuits.

Usage Tips:

1. Ensure Correct Connections: Pay attention to battery polarity when connecting to the module.
2. Stable Power Input: Use a reliable 5V DC power supply to ensure consistent charging performance.
3. Battery Safety: Use only compatible 3.7V Li-ion batteries to avoid damage.
4. Heat Management: Avoid prolonged charging at high currents to prevent overheating.
5. Mount Securely: Secure the module in your project to prevent accidental disconnections during use.
