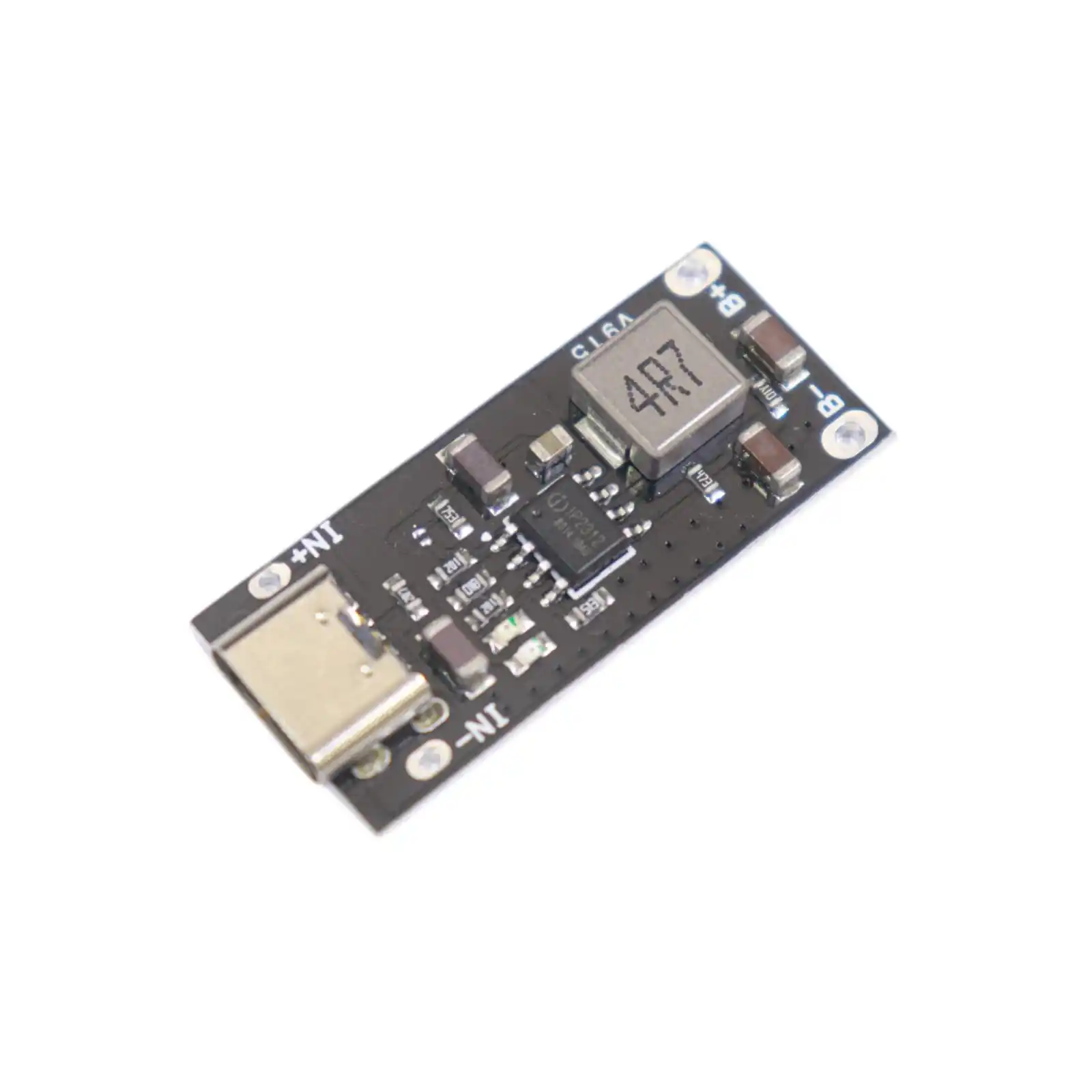

TYPE-C INPUT HIGH CURRENT 3A POLYMER TERNARY LITHIUM BATTERY QUICK FAST CHARGING BOARD WITH IP2312 CC/CV MODE, CONVERTING 5V TO 4.2V/4.35V

Description:
This Type-C Input High Current 3A Fast Charging Board is designed for charging polymer ternary lithium batteries efficiently and safely. Utilizing the IP2312 chip, it supports constant current (CC) and constant voltage (CV) charging modes. This module converts a 5V input to 4.2V or 4.35V output, ensuring optimal charging performance. Ideal for applications requiring high-current fast charging, this board integrates advanced protection features and is compatible with Type-C power sources.

Specifications:

Key Features:

• Fast Charging Capability: Supports high-current charging up to 3A.
• Type-C Input: Ensures universal compatibility with modern power sources.
• CC/CV Charging Modes: Provides safe and efficient battery charging.
• Selectable Output Voltage: Supports 4.2V and 4.35V configurations for different battery types.
• Advanced Protection: Includes safety features like overcurrent and short circuit protection.
• Compact Design: Easy to integrate into various projects.

Applications:

• Battery Packs: Charging modules for lithium polymer battery packs.
• Portable Devices: Suitable for power banks and mobile gadgets.
• DIY Electronics: Ideal for projects requiring safe and efficient lithium battery charging.
• Renewable Energy Systems: Used in solar or wind-powered battery setups.

Usage Tips:

• Ensure the input voltage is stable and within the supported range.
• Connect the battery with correct polarity to avoid damage.
• Select the appropriate output voltage (4.2V or 4.35V) based on your battery's requirements.
• Monitor charging to prevent overcharging and maximize battery lifespan.
• Use in a well-ventilated area to prevent overheating.
